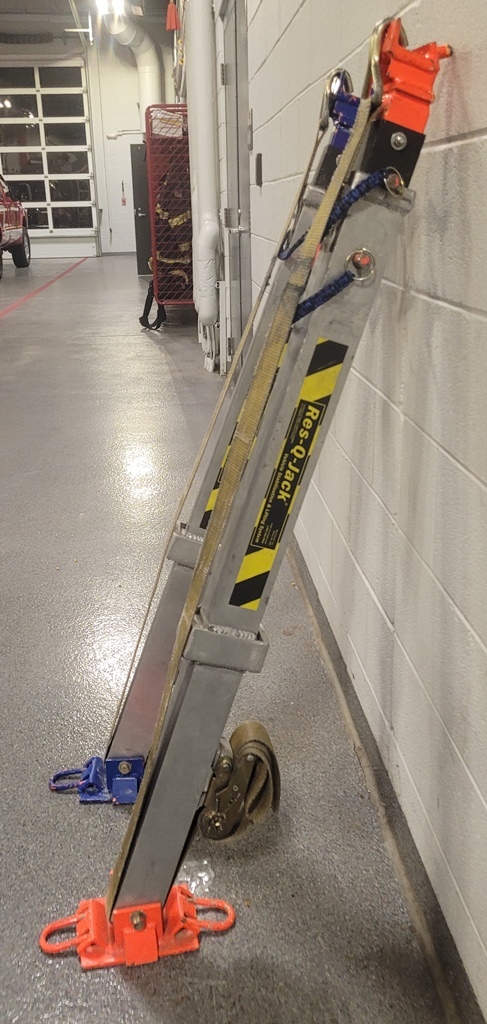

Res-Q-Jack Telescoping Strut System (A2780)

RES-Q-JACK – Two aluminum 56 to 98 inch range telescoping struts. Excellent for vehicle stabilization. Quick and easy set up. Includes two struts, one jack and two base plates.

RES-Q-JACK SPECIFICATIONS (Item # ALX-STRT)
Column WLL – 9,700 lbs.
Lifting WLL – 6,000 lbs.
Extended Height – 98″
Collapsed Height – 56″
Weight – 42 lbs
Add-On-Jack Weight – 25 lbs

ALUMINUM LONG RES-Q-JACK INCLUDED COMPONENTS

1. Swivel CRG End Fitting
   The Aluminum X-Strut comes standard with Swivel CRG head fitting which gives you a variety of purchase point options and rotates 360° to easily find any purchase point.
2. Ergonomic Cone Pins
   Cone pin design features a flared end, making these pins easy to grip and hard to lose on scene. The flared end also helps automatically line up the available Add-On Jack for fast and easy attachment.
3. Rugged Aluminum Construction
   The Aluminum X-Strut is built from durable high strength 6061-T6 aluminum for 9,700 lbs. of strength column load (6,700 lbs. point load and 5,700 lbs. chain grab).
4. Add-On-Jack (1)
   The Aluminum X-Strut transforms from a shoring strut to a lifting strut in seconds with the removable mechanical Add-On Jack, giving 6,000 lbs. of lifting capacity with 12 inches of travel.
   Need to lift more than a foot? Just remove the Add-On Jack and reset for 12 more inches of lift. Need a second jack? Just remove Add-On-Jack by pining strut and then install jack on second strut under load.
5. Built-In Ratchet Strap
   The Aluminum X-Strut includes a ratchet strap with wire hooks mounted on the side of the strut chassis, keeping your strap right where you want it for faster response.
6. Strut-Mounted D-Ring
   The Aluminum X-Strut includes an added D-Ring mounted directly to the strut chassis for added versatility in attaching additional straps and hooks.
7. Base-Mounted D-Rings
   Pivoting rings built into the base plate allow for fast attachment of straps, hooks and chains, or double as a picket receiver when anchoring is needed.
8. Load Pad Base Plate (2)
   The 14” x 14” steel load pads spread the load evenly over soft ground by spreading load over larger area. Four carry holes double as stake holes, and the inner strut pocket is designed to snugly fit the strut base.
