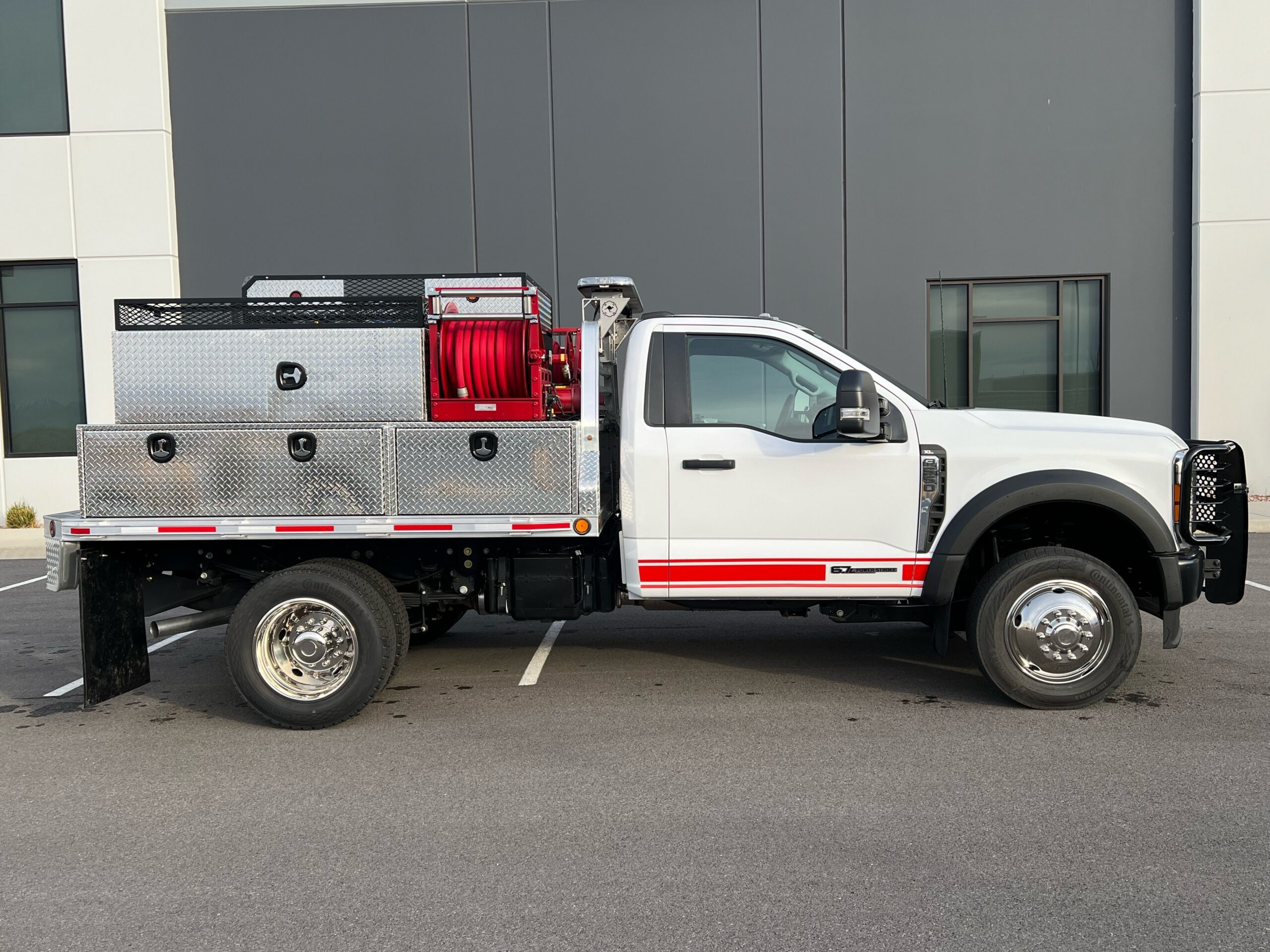

2024 Ford F-550 Quick Attack (W1462)

General

Engine: 6.7L Power Stroke V8 Diesel
Transmission: 6-speed Automatic
Drive: 4×4, Single Cab (2-door)
Warranty: 5 years/60,000 miles powertrain limited

Features:

AC, Power Windows/Locks/Mirrors, Tilt Wheel, Cruise Control
Electronic Vehicle Info Center, Extended Mirrors, AM/FM Radio
Cloth Seats, Keyless Entry with Alarm
Black Vinyl Floor Covering, Chrome Appearance Package
Tires: 19.5″ All-Terrain with Spare Tire
Wheelbase: 173.4″
Other: Dual Rear Tires, Mud Flaps, Tinted Glass
Custom Fabrications
Bed: Heavy-duty 9’4″ extruded aluminum
Boxes: Heavy-duty aluminum with LED lighting
Front Box: 36″W x 18″H x 18″D
Rear Box: 60″W x 18″H x 18″D
Upper Side Boxes: 60″L x 18″H x 18″W
Tank Rack: Includes custom lights (brake, tail, turn, hazard, clearance, work lights)

Lighting and Safety

Whelen Light & Siren Package:
Cencom Core R, Justice 56” DUO WCX RX2SP3R Light Bar
Emergency flashers (red/white), traffic advisor, take-down/alley lights
Grill Guard: Heavy-duty with emergency LED flashers
Reflective Striping: Black, per city standards

Additional Lighting:
Reverse Lights
Work Lights

Pump and Tank

Pump: Hale HPX75-B23
NFPA 1906 compliant:
50 GPM @ 250 PSI, 70 GPM @ 220 PSI, 135 GPM @ 80 PSI
23 HP V-Twin Briggs & Stratton engine
Options: Standard exhaust primer (hand/electric optional)
Tank: 400-gallon UPF Defender 2CE with 12-gallon foam cell
Lifetime Warranty
Water level sight gauge
Foam and Hose Systems
Scotty Foam System: Through-the-pump application
Hose Reels: 2 electric Hannay reels with chrome rollers
Includes: 100’ length 1” hose and nozzle
Accessories: Spanner wrench set
Additional Equipment
Manifold System:
(2) 1” discharge NPSH with caps
(1) 1.5” discharge NH with cap
(1) Check valve for pump protection
(1) Tank fill/re-circulation

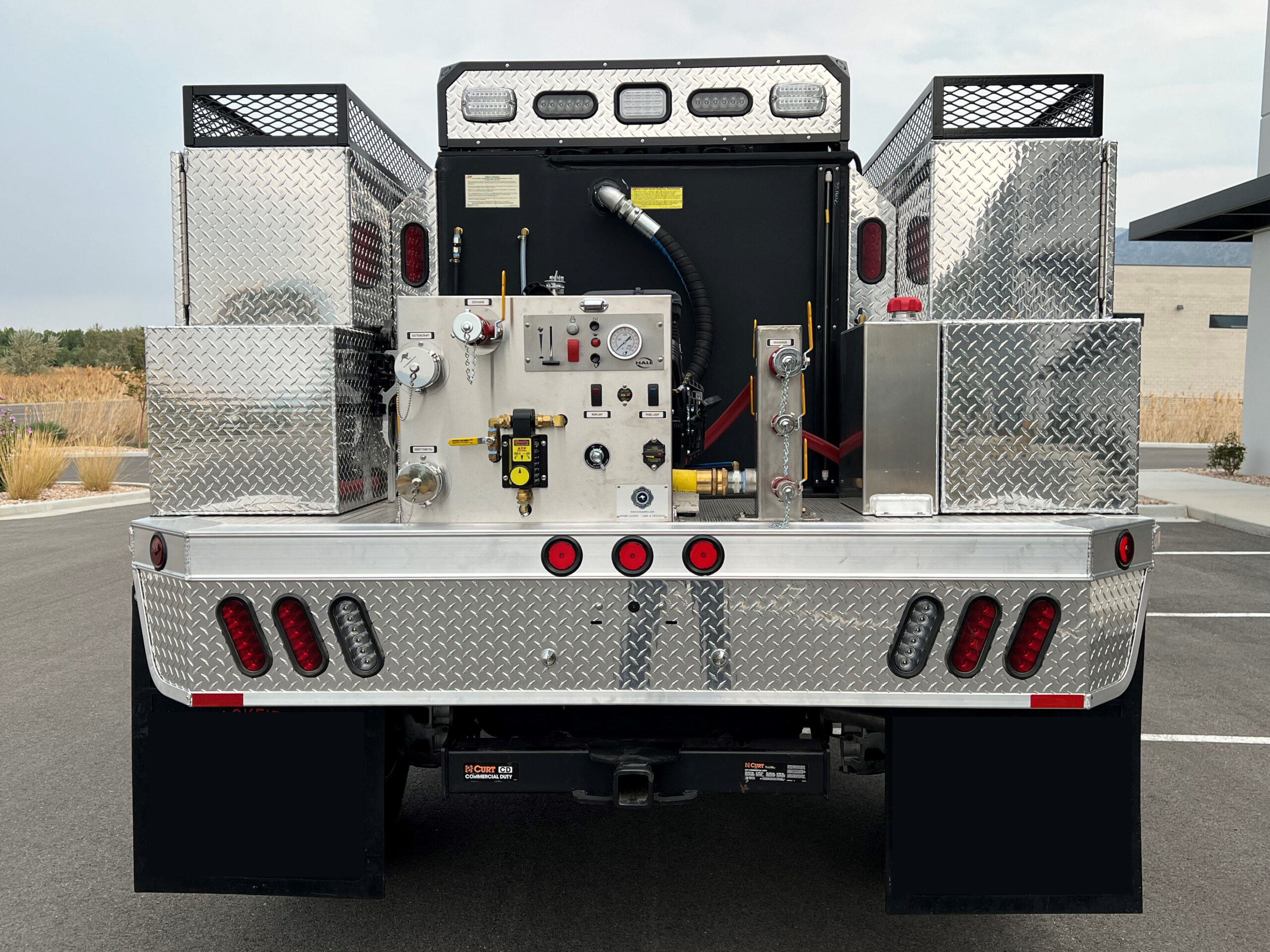

Control Panel:
Includes suction/discharge gauges, pressure gauge, circuit breaker, lighting switches
2.5” NH drafting inlet, 1.5” NH discharge, master switch
