2024 Dodge Ram 5500 4×4 Wildland (W1487)

General

2024 Dodge Ram 5500
6.7L Cummins Turbo Diesel
6-speed automatic transmission
3 Yr / 100,000 mile Powertrain Limited Warranty
4X4
4-door crew cab
AC
Power windows, locks, mirrors
Tilt wheel
Cruise control
Electronic Vehicle Information Center
Extended mirrors
AM/FM radio
Cloth seats
Keyless entry (alarm)
Black vinyl floor covering
Chrome appearance package
19.5″ all-terrain tires
Mud flaps
Spare tire
Custom paint
Custom side step bar
Custom front fender flares
Rear reflective chevrons
Super Single Package
Buckstop – Heavy Duty Brush Guard
15,000LB Mile Marker Heavy Duty Military Grade Winch
Upgraded Emergency Lighting Package
Emergency Rear LED Directionals

Heavy Duty 9’ 4” Extruded Aluminum Bed
Custom Tool Racks
Heavy Duty Aluminum Boxes:
Front Box: 36″ W x 18″ H x 18″ D
Rear Box: 60″ W x 18″ H x 18″ D
Custom Tank Rack with (11) Custom Lights:
(2) Brake, tail, turn hazard lights
(4) Clearance lights
(2) Whelen 700 Series emergency lights
(2) Reverse lights
(1) Work light
In-box LED lighting (battery push button)

Heavy Duty Bumper Grille Guard w/ emergency LED flashers (Red/White)
Curt Hitch
Reflective striping
Whelen Light & Siren Package:
Whelen Cencom Core R
Whelen Justice 56” DUO WCX RX2SP3R Light Bar
20 LED modules: Flashing, Traffic Advisor, Take Down, Alley Lights
Whelen WeCanXCTL6 Know/Slide Control Head
Whelen WeCanX External Amplifier
(2) Whelen WeCanX 16 Output Expansion Modules
Whelen SA315U Speaker
(2) Whelen M6 DUO Flasher Red/White Rear
(2) Whelen Ion T Series Linear Duo Flasher Red/White Front (Brush Guard)

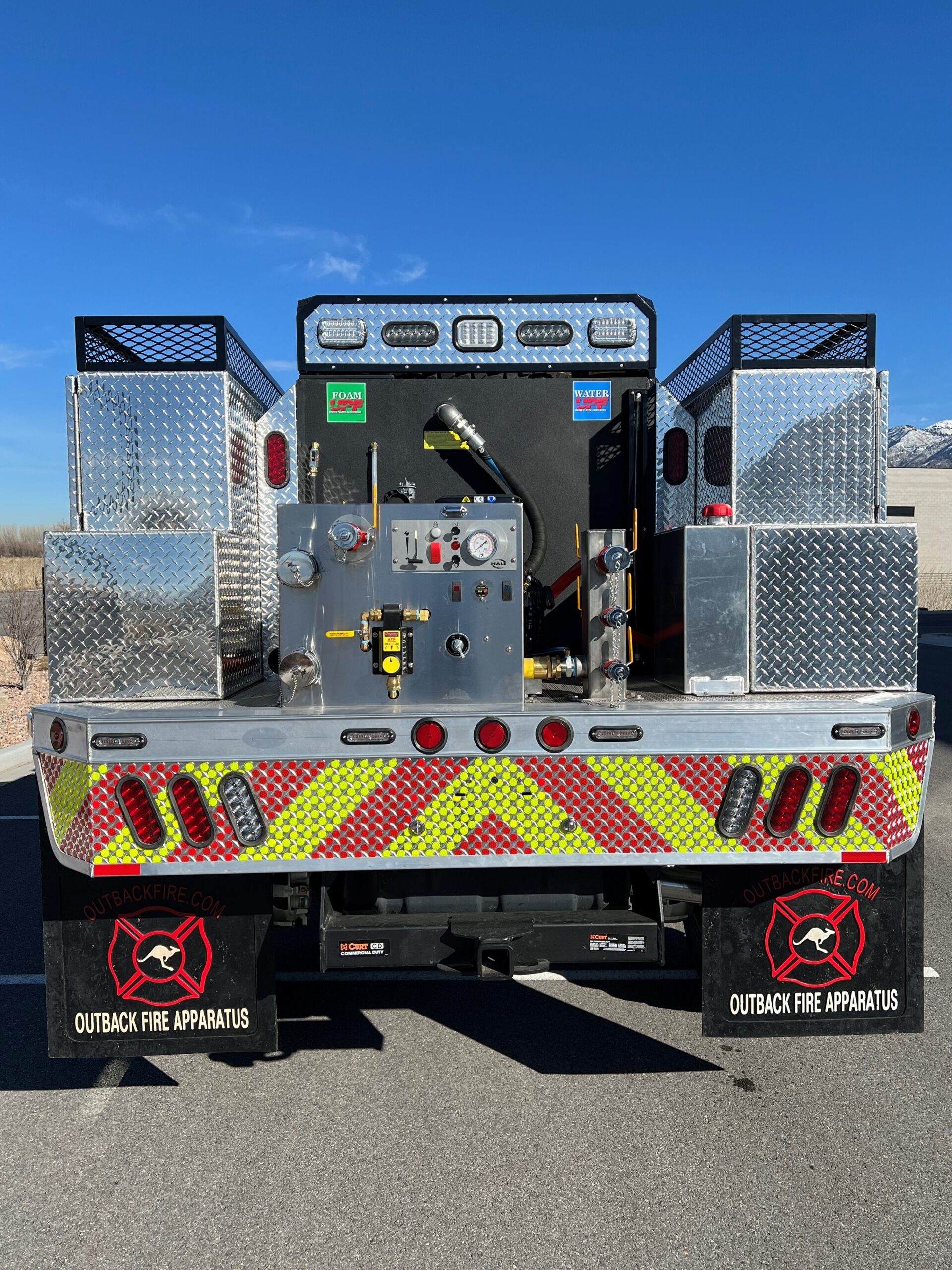

Pump and Tank

Hale Pump (HPX75-B23)
Meets NFPA 1906 Performance Rating:
50 GPM @ 250 PSI
15 GPM @ 380 PSI
70 GPM @ 220 PSI
135 GPM @ 80 PSI

23 HP V-Twin Briggs & Stratton Engine
EPA (Evaporative Requirement Approved)
Exhaust primer standard

Manifold System:
(2) 1″ discharge NPSH with aluminum caps
(1) 1 ½” discharge NH with aluminum cap
(1) 1 ½” check valve for pump protection
(1) 1 ½” tank fill (pump to tank) re-circulation

Control Panel includes:

Pressure gauge
Low oil light
20 amp circuit breaker
Rear work light switch
Panal light switch
LED panel light

2 ½” NH drafting inlet
1 ½” discharge
2 ½” NH direct tank fill
400 gal UPF Defender 2CE Tank
12 gallon foam cell
Lifetime warranty
Blue color-coded tank fill
Green color-coded foam fill
Water level site fill gauge
Scotty Foam System (through the pump)
(2) Electric Hannay hose reels w/ chrome rollers
(2) 100’ length 1″ hose
(2) 1″ hose nozzles
Spanner wrench set

Dimensions

19,000 GVW
23’ 6” length
8’ 6” height
8’ wide
