2011 Freightliner E-One Pumper Tanker 1250/1000 (E4573)

General

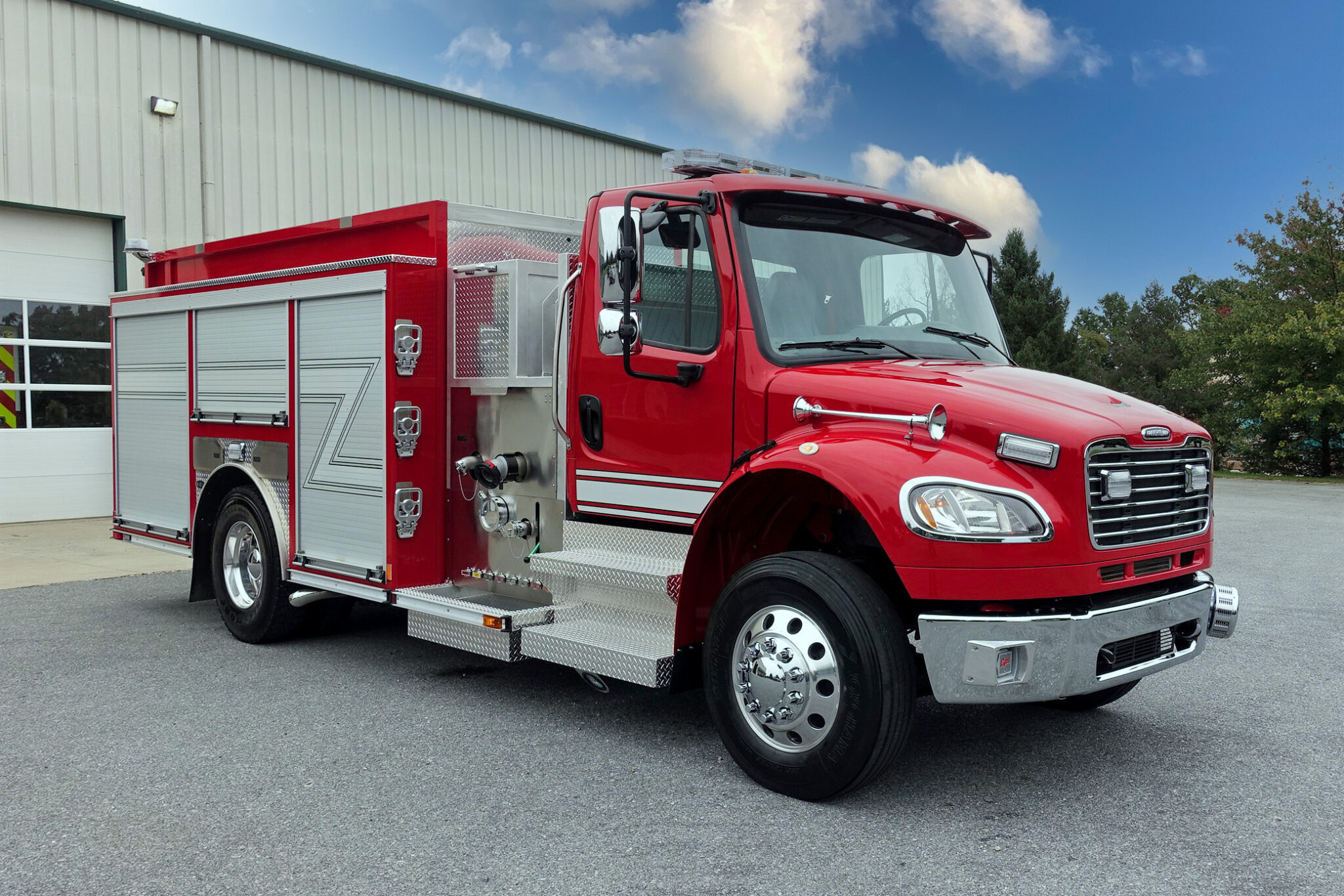

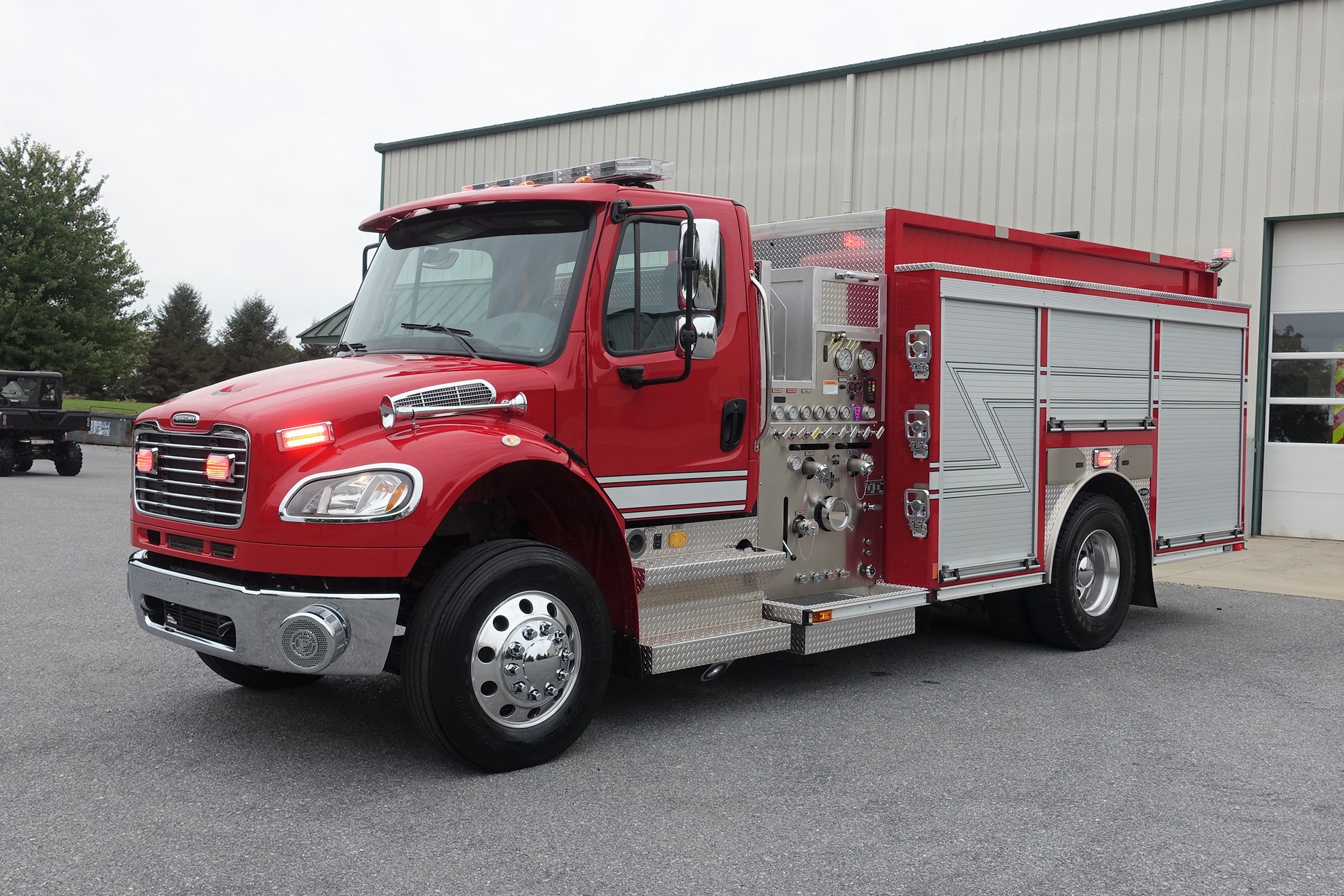

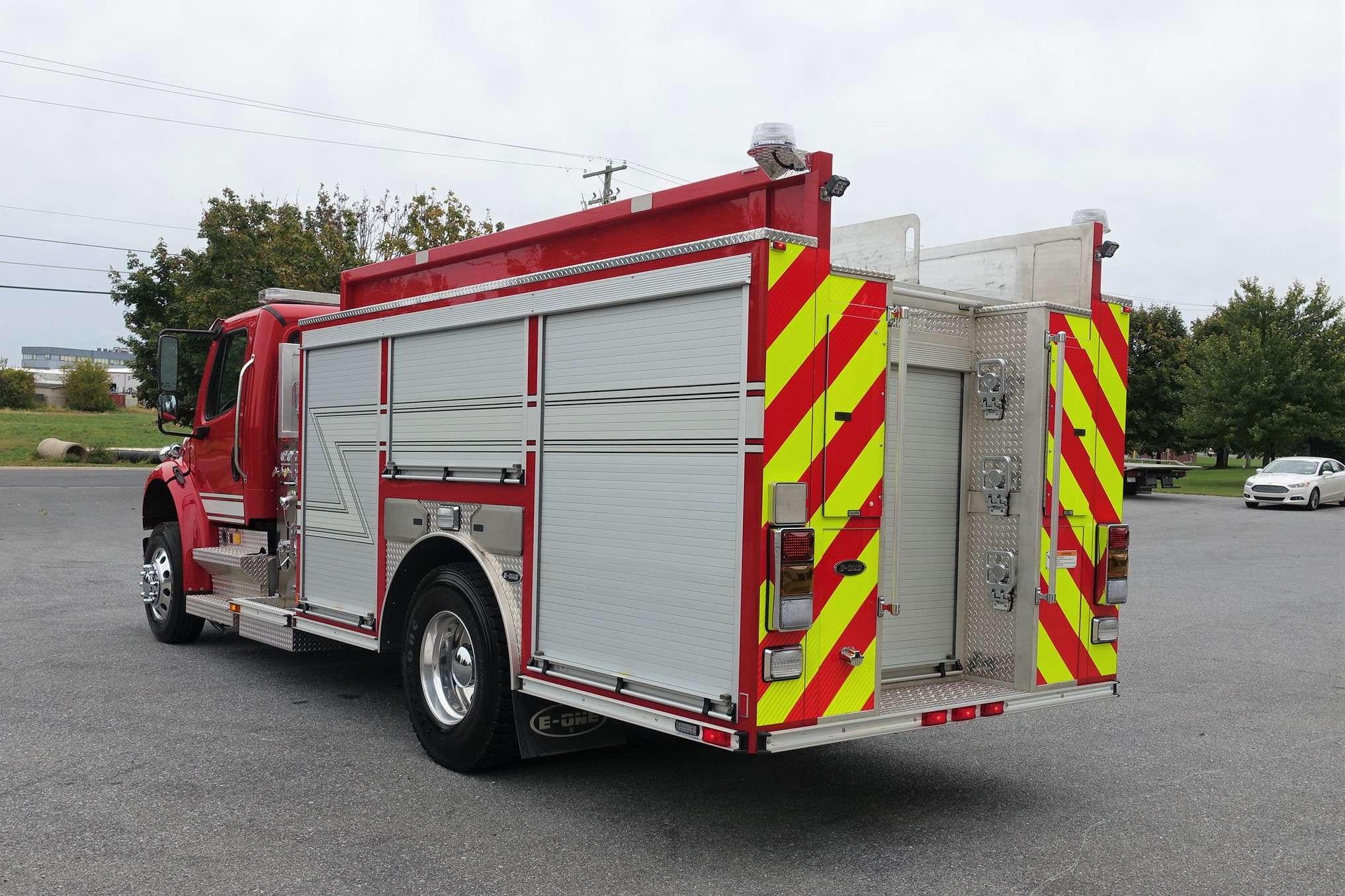

2011 Freightliner M2 / E-One Tradition Pumper-Tanker
Chassis
M2 106MD Conventional Chassis
Reinforced Frame Rails
Air Brakes w/Severe Service Lining
Bendix AD-9 Air Dryer w/Heater
Air Tank Auto Drain Valves
Air Shoreline
50 Gal. Alum. Fuel Tank Left Side
Right Hand Horizontal Exhaust
Chrome Front Bumper
Polished Accuride Aluminum Wheels
Alliance Chrome Wheel Trim
Front Axle
Meritor MFS-12-143A
12,000 LB Rating
Multi Taper-leaf Suspension
Shock Absorbers
Yokohoma 295/75R22.5 Tires
Rear Axle
Meritor RS-26-185
26,000 Lb Rating
4.89 Rear Axle Ratio
Spring Suspension
Mobil Synthetic Oil
Firestone 12R22.5 Tires

Engine

Cummins ISC-330
330 HP @ 2000 RPM
Exhaust Brake
DPF Deleted
NO DEF FLUID!
Transmission
Allison 3000EVS
5-Speed Automatic

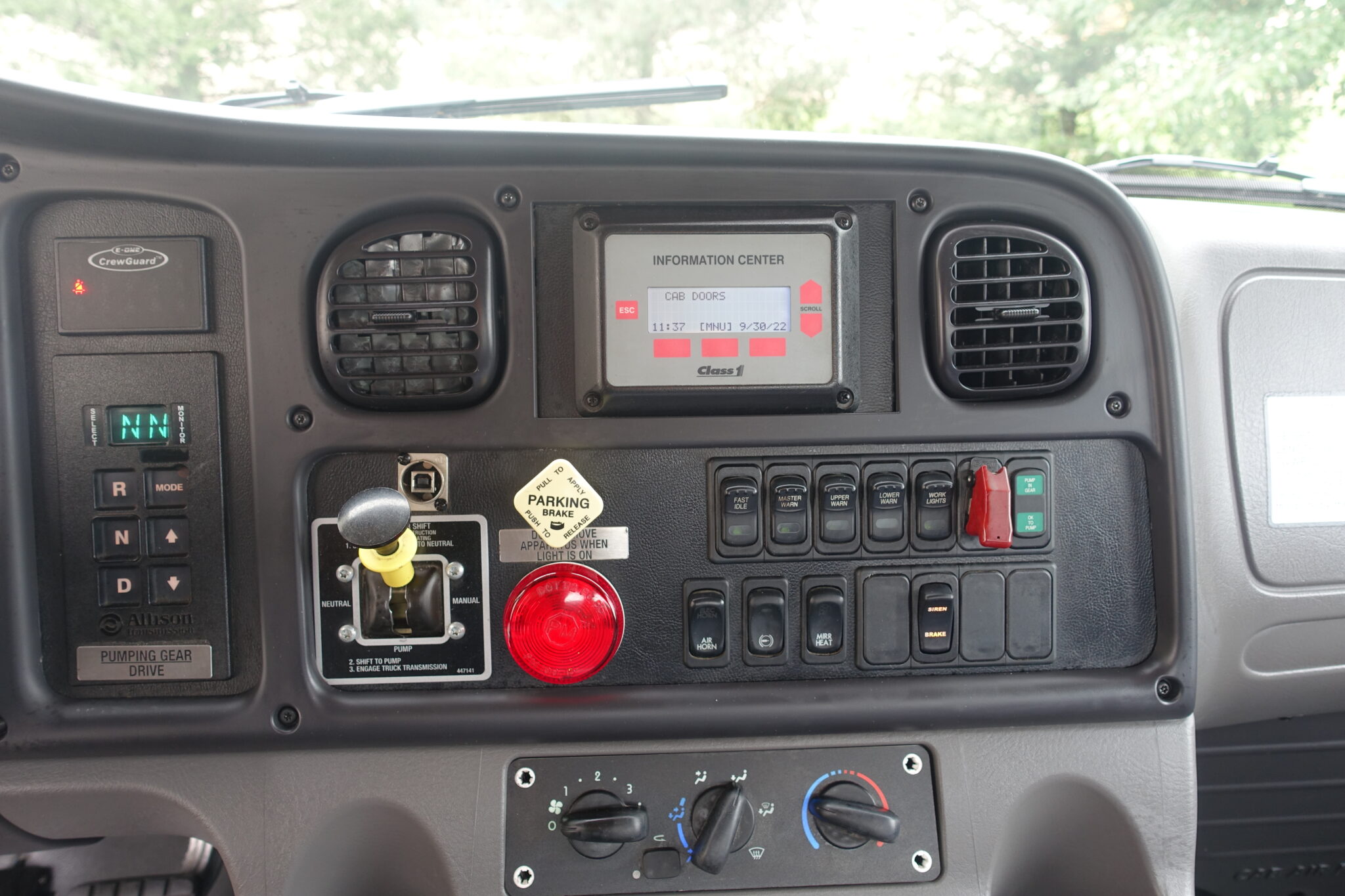

Dash Mounted Push Button Controls
12 Volt Electrical
Leece-Neville Alternator
12V 270 Amps
2 Batteries
Alliance 2280CCA Group 31
Kussmaul LPC Charging System
40 Amp Output
Remote Charge Indicator
Kussmaul Super Auto-Eject Shoreline
120V 20Amp Connector Included

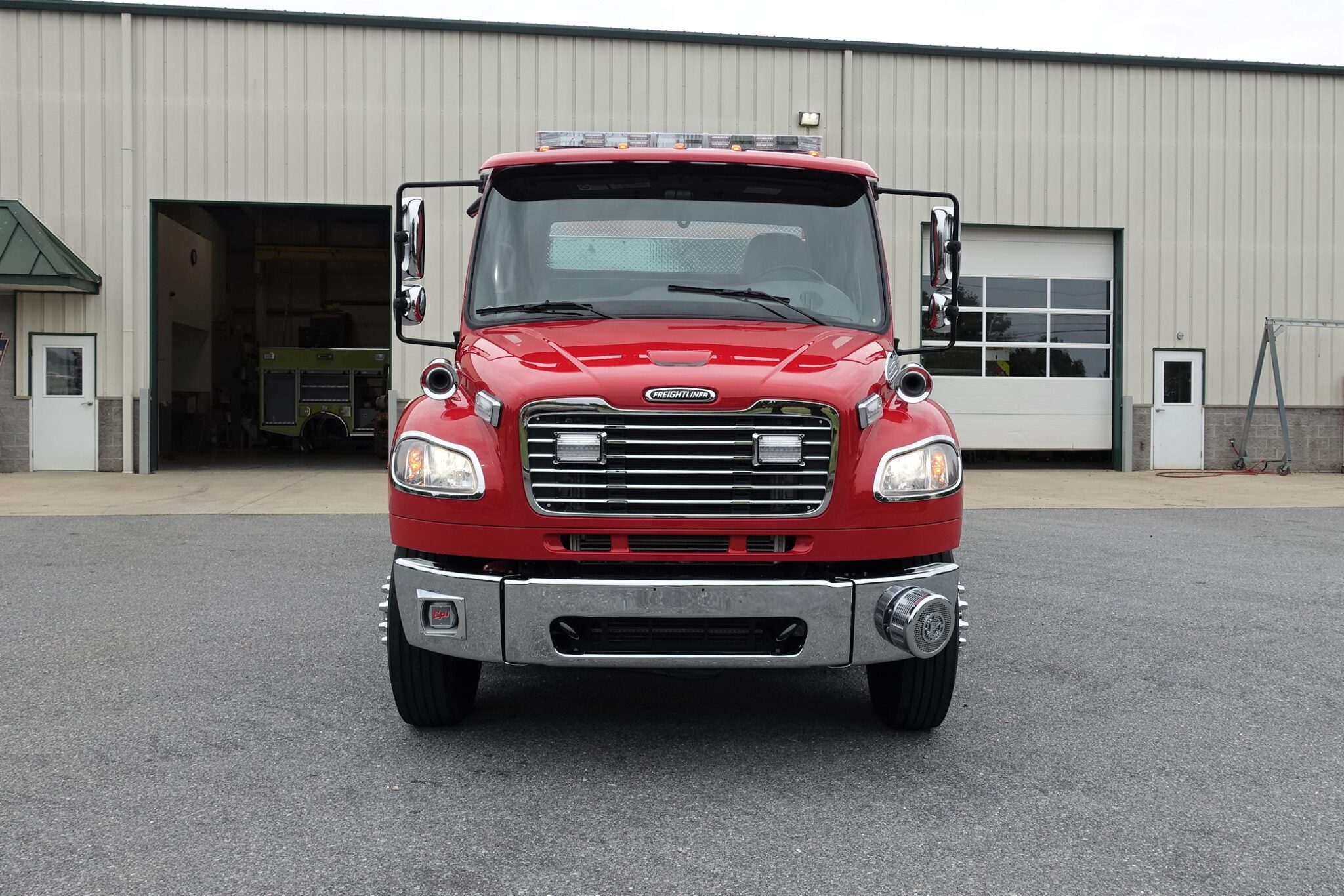

Cab Exterior
Air-Ride Cab Mounts
Chrome Grille
Chrome Heated Power Mirrors
Exterior Sun Visor
NFPA Compliant Grab Handles W/Rubber
Inserts

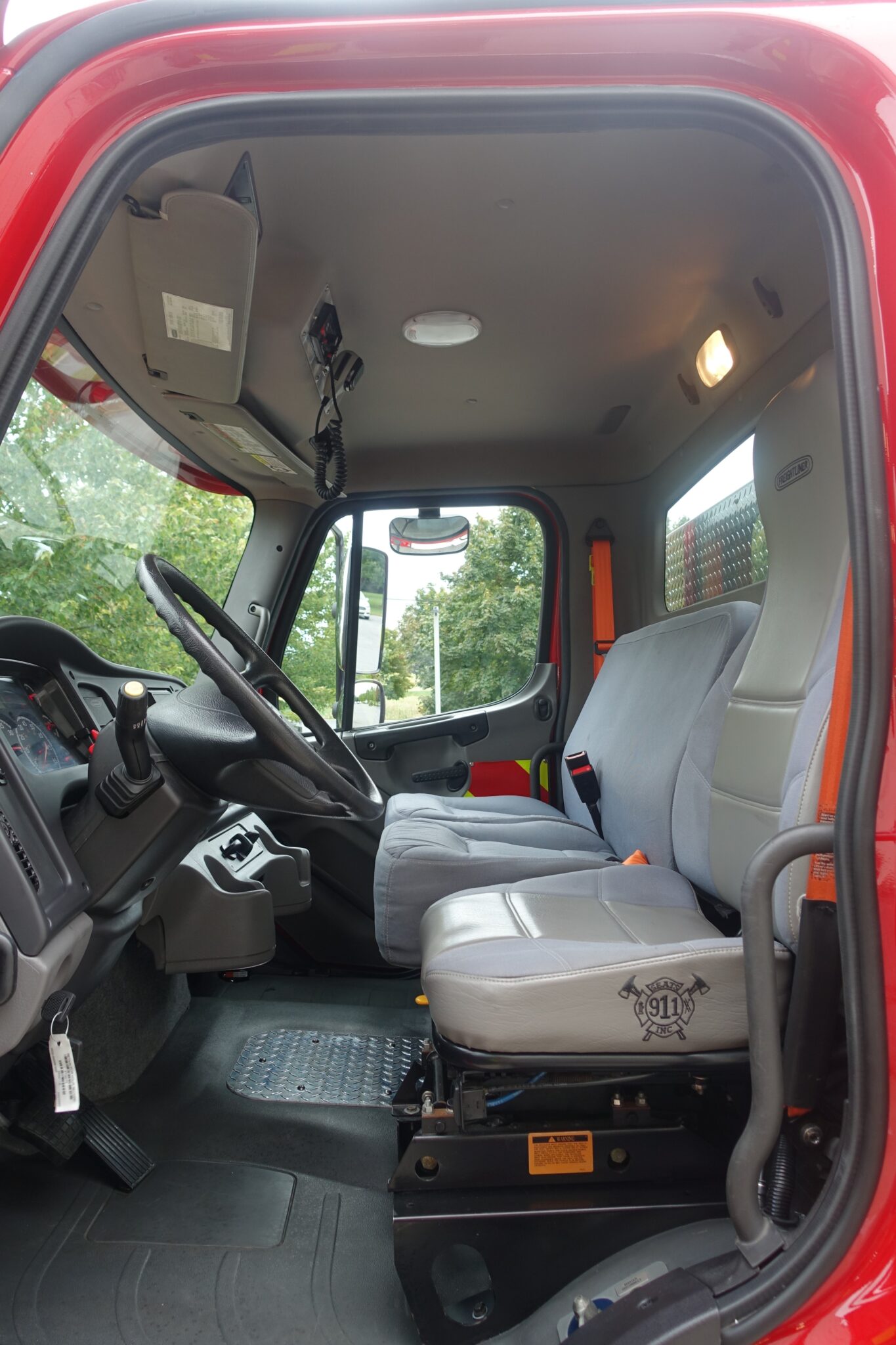

Cab Interior

Seating for 3
Drivers Seat Air Ride
NFPA Orange Seat Belts
Opal Grey Interior
Air Conditioning
Red / White LED Dome/Map Light
Tilt and Telescoping Steering Wheel
Delay Windshield Wipers
Engine Air Filter Indicator

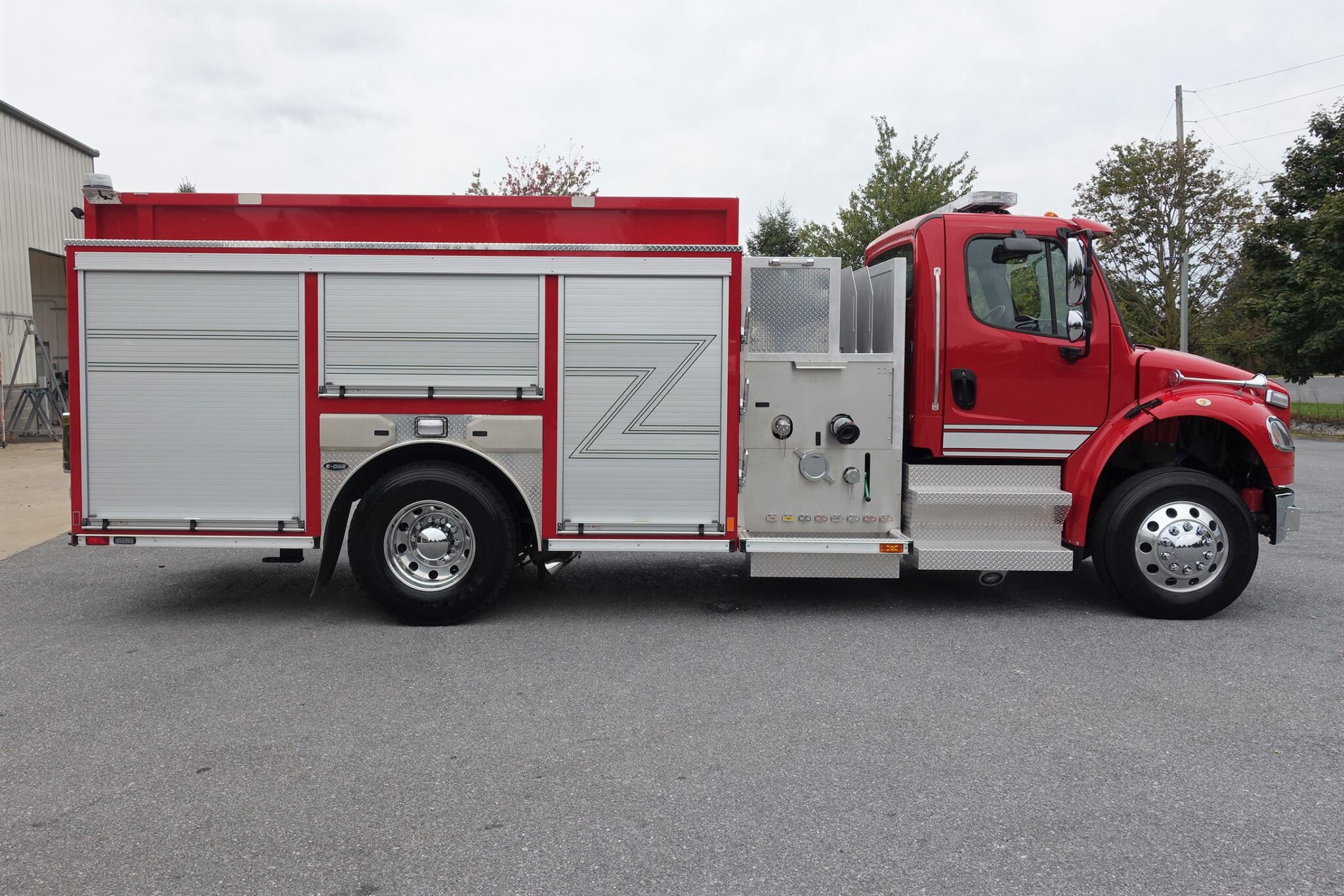

E-One Apparatus
Model: Tradition
Aluminum Body Construction
ROM Roll-up Doors, Satin Anodized
Class 1 Multiplexing System
1- LED Water Level Indicator
LED Work Lights under Apparatus
All Compartments Lighted, LED

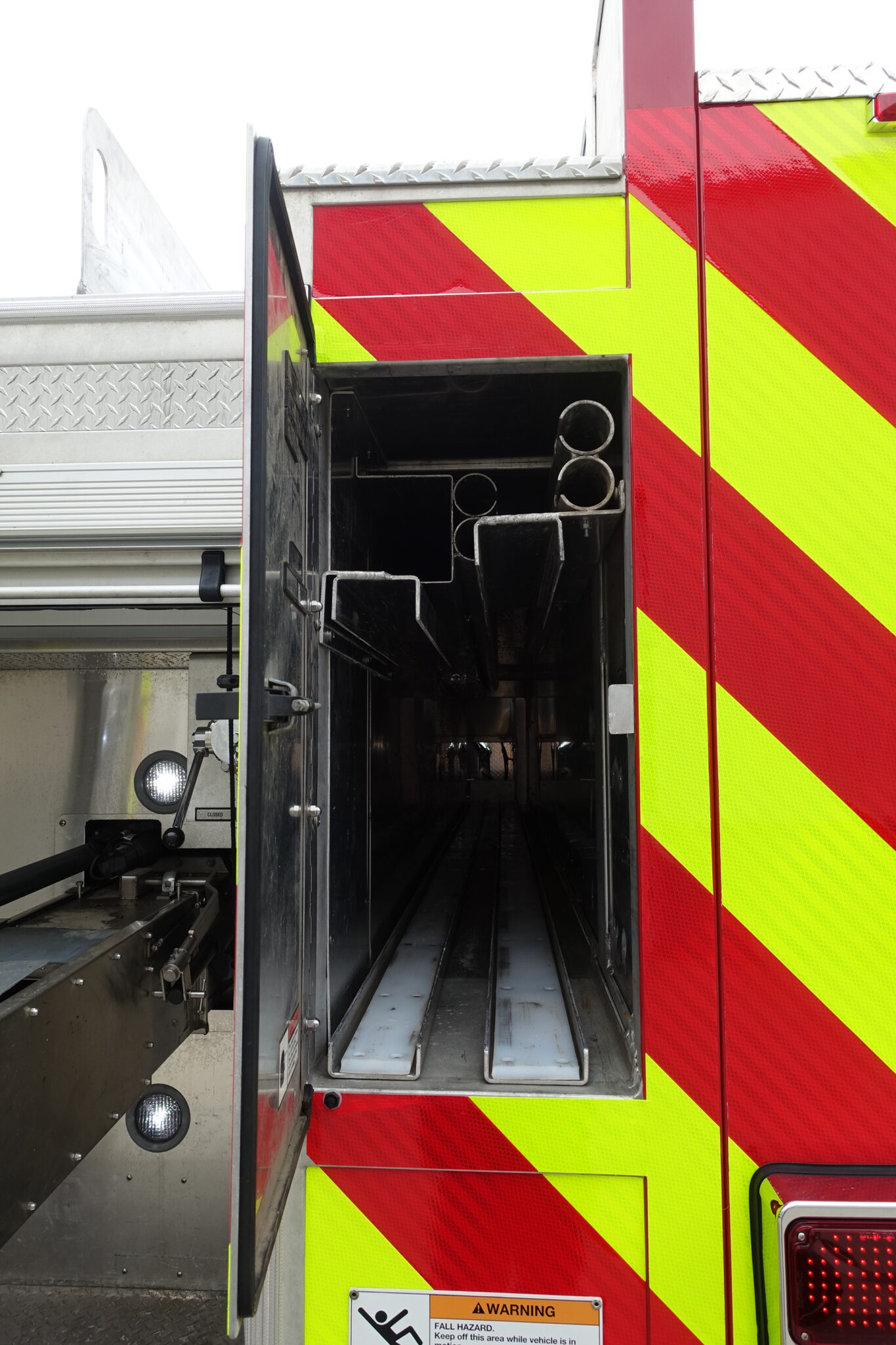

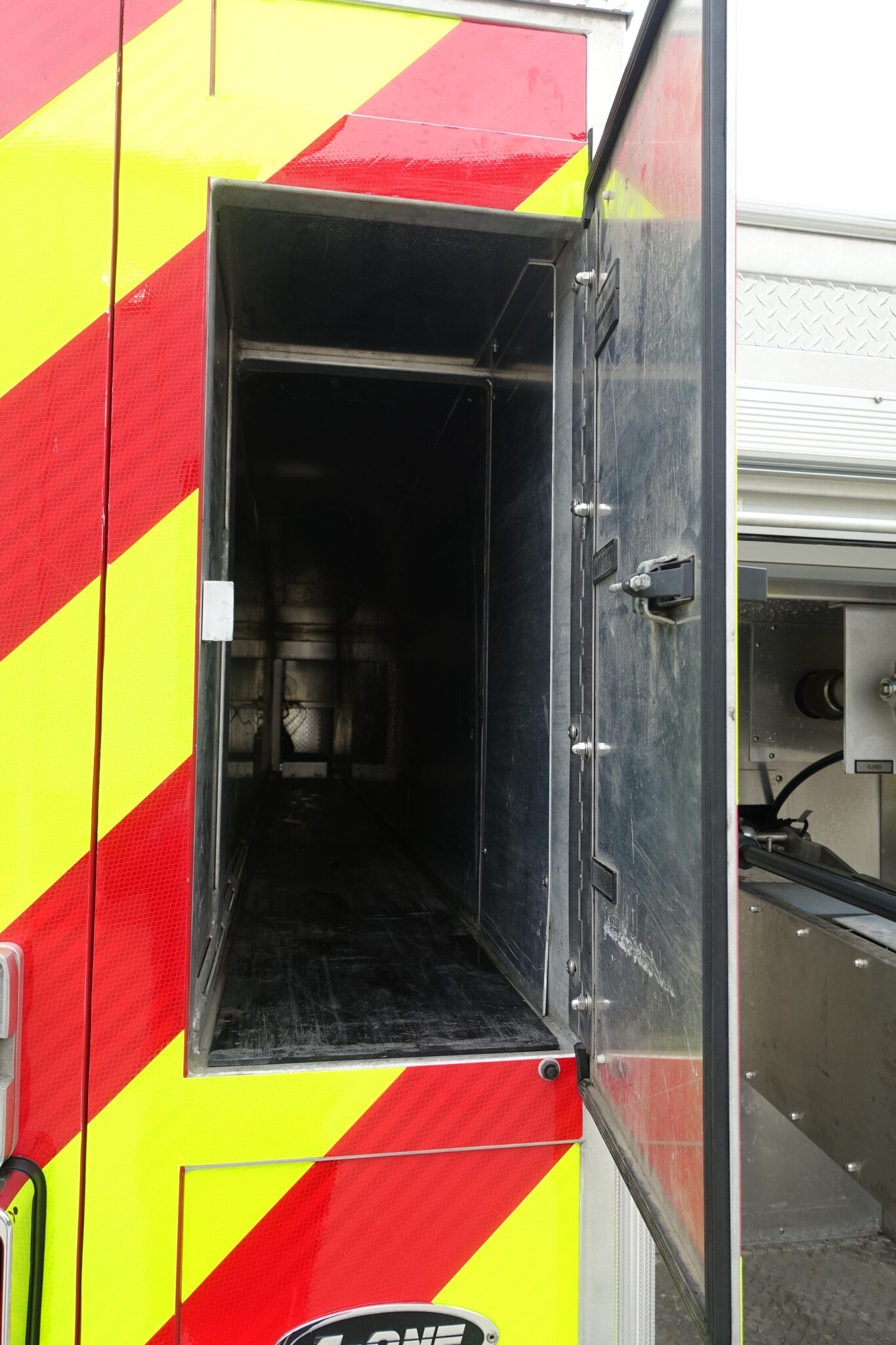

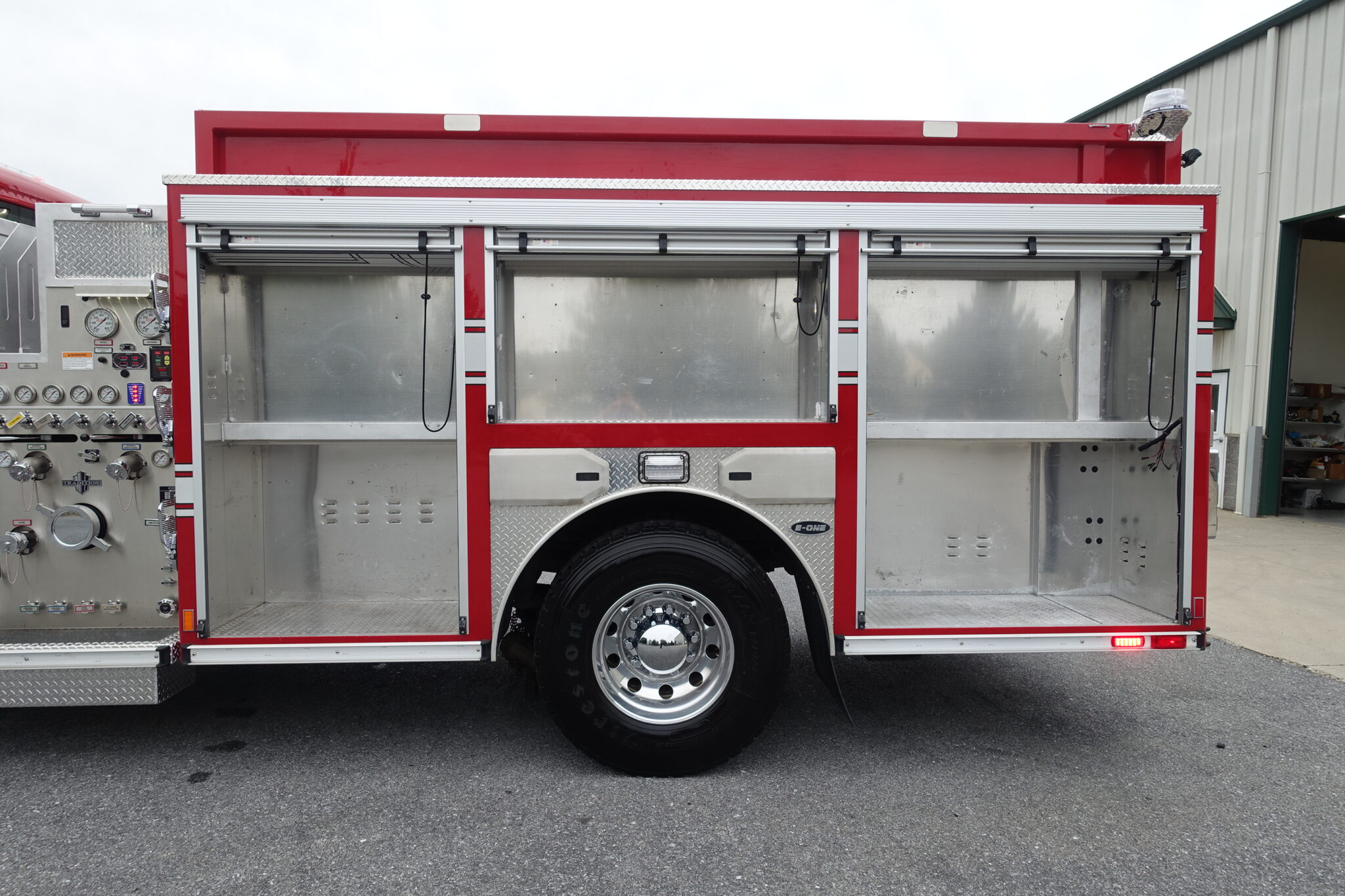

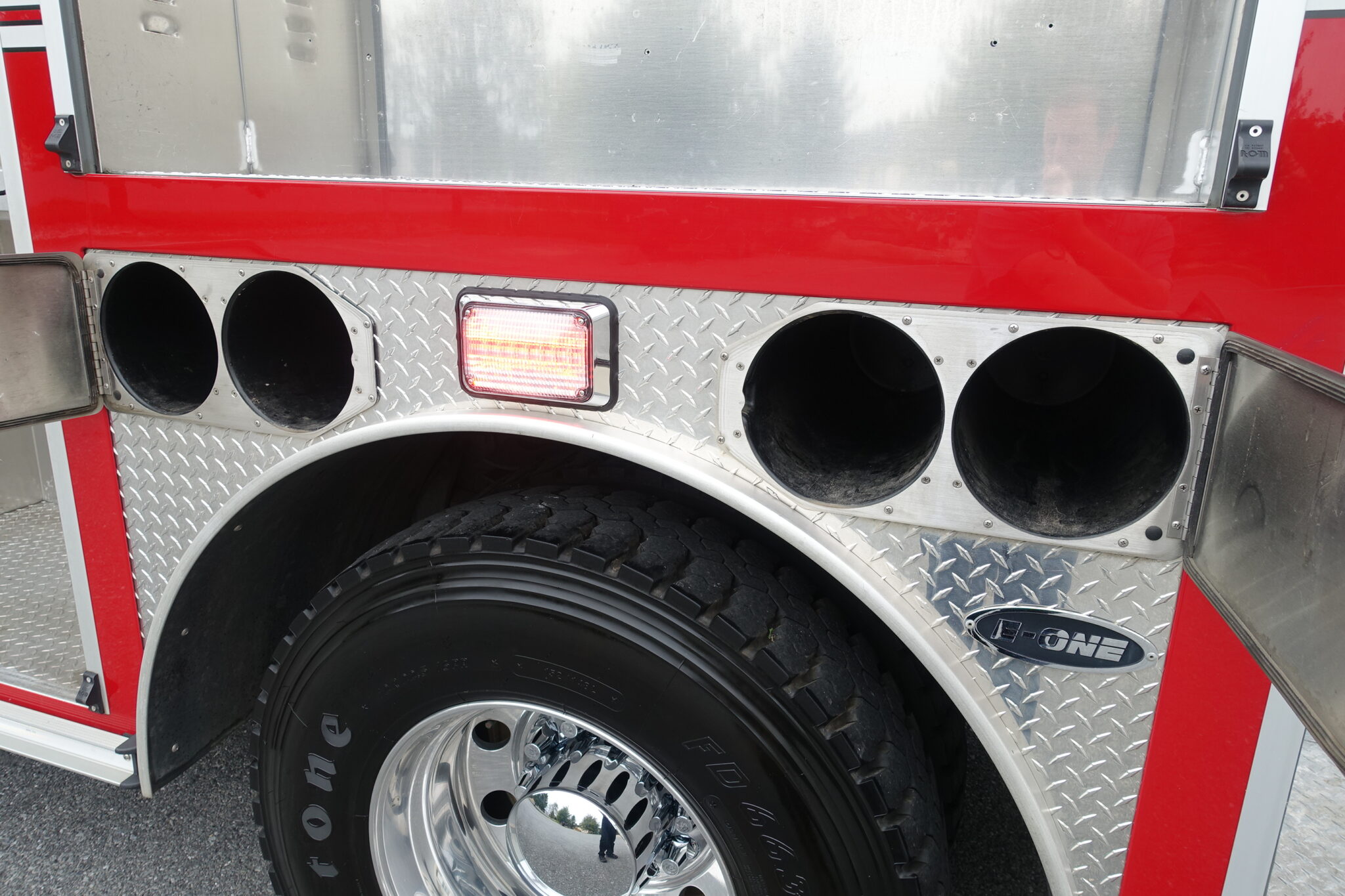

SCBA Storage Compartments
(8 Total, Front and Rear of Rear Wheels)

Pump and Tank

1000 Gal UPF Poly Tank
Hale Q-Flo Pump
1250 GPM @ 150PSI Capacity

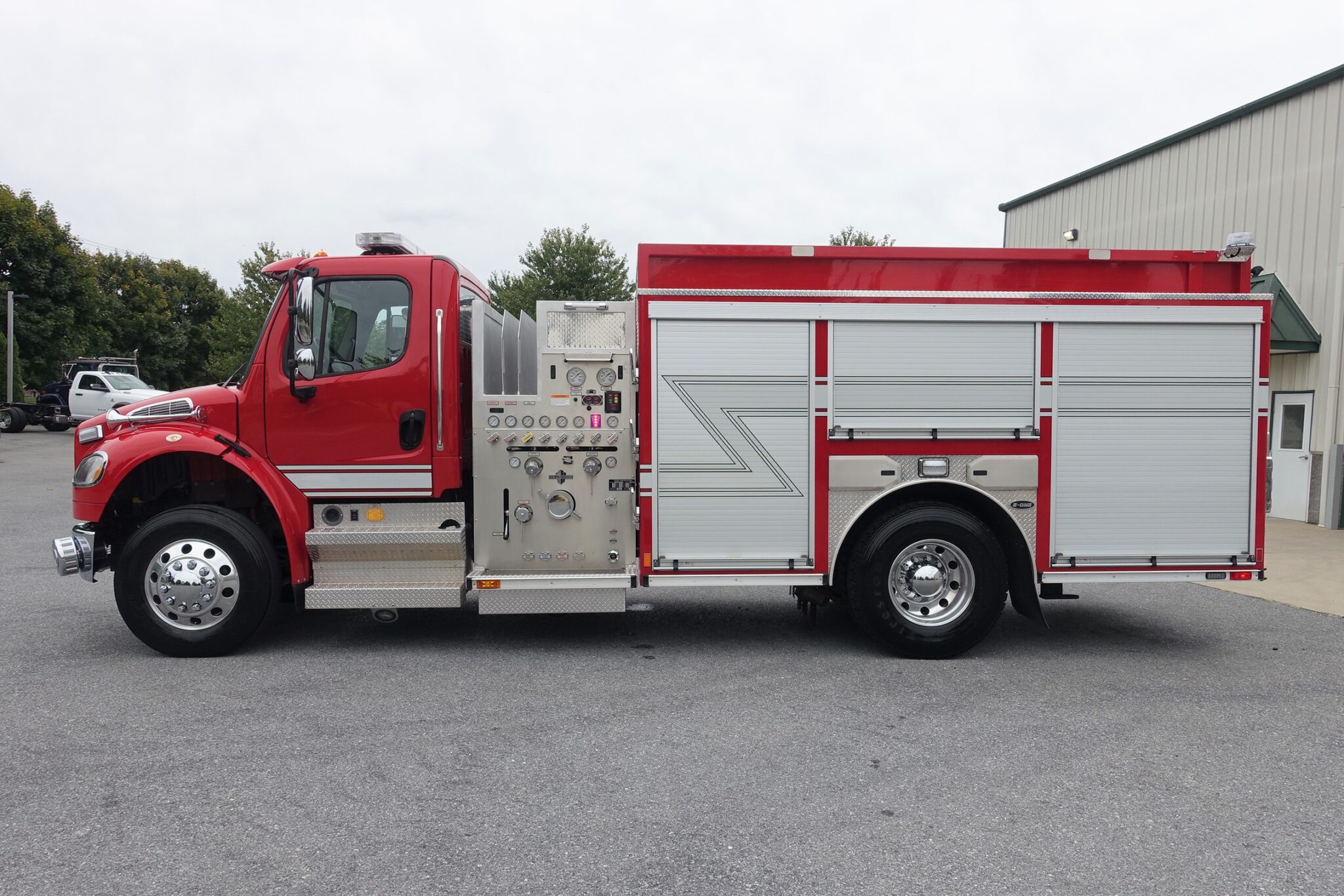

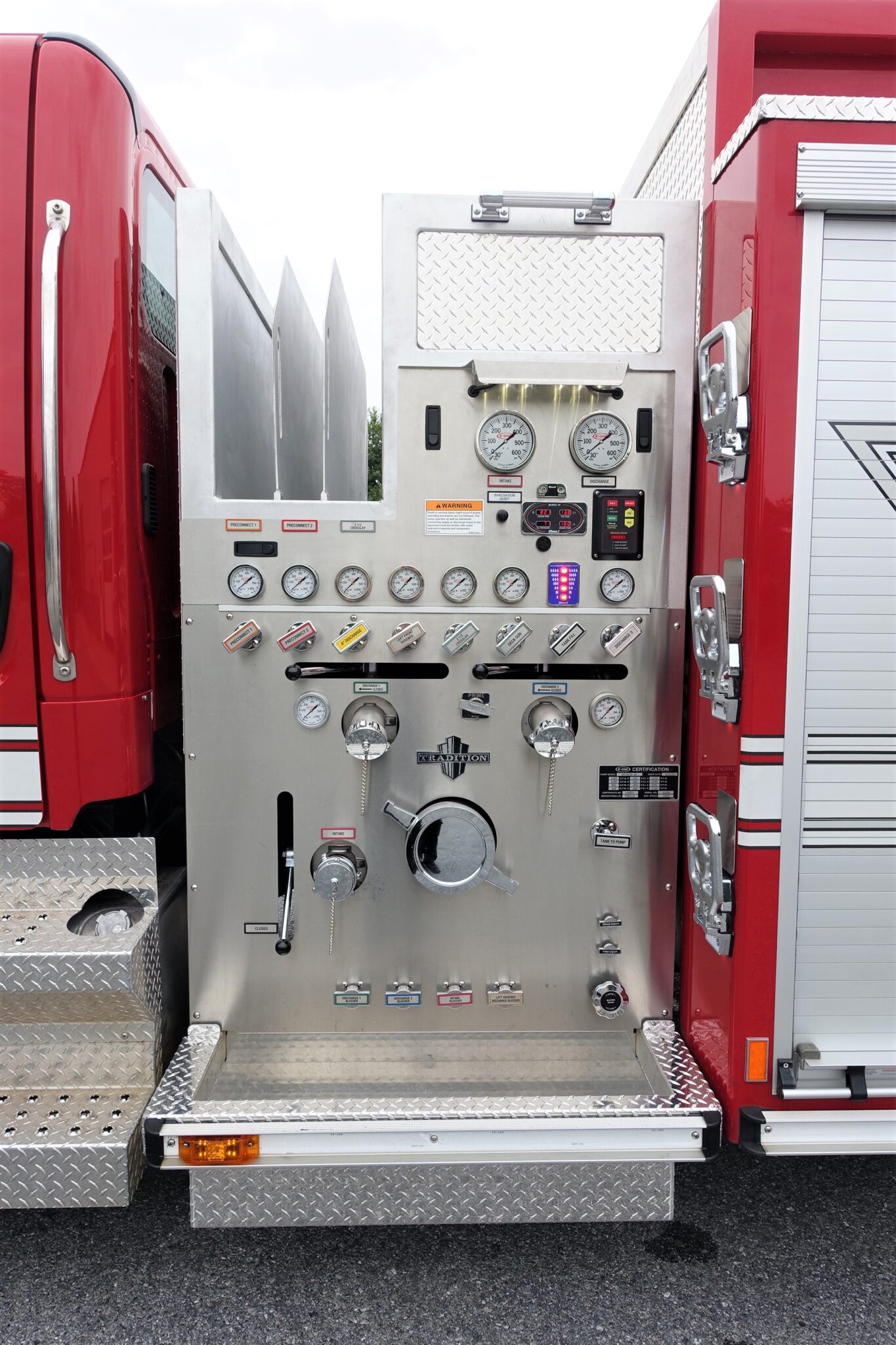

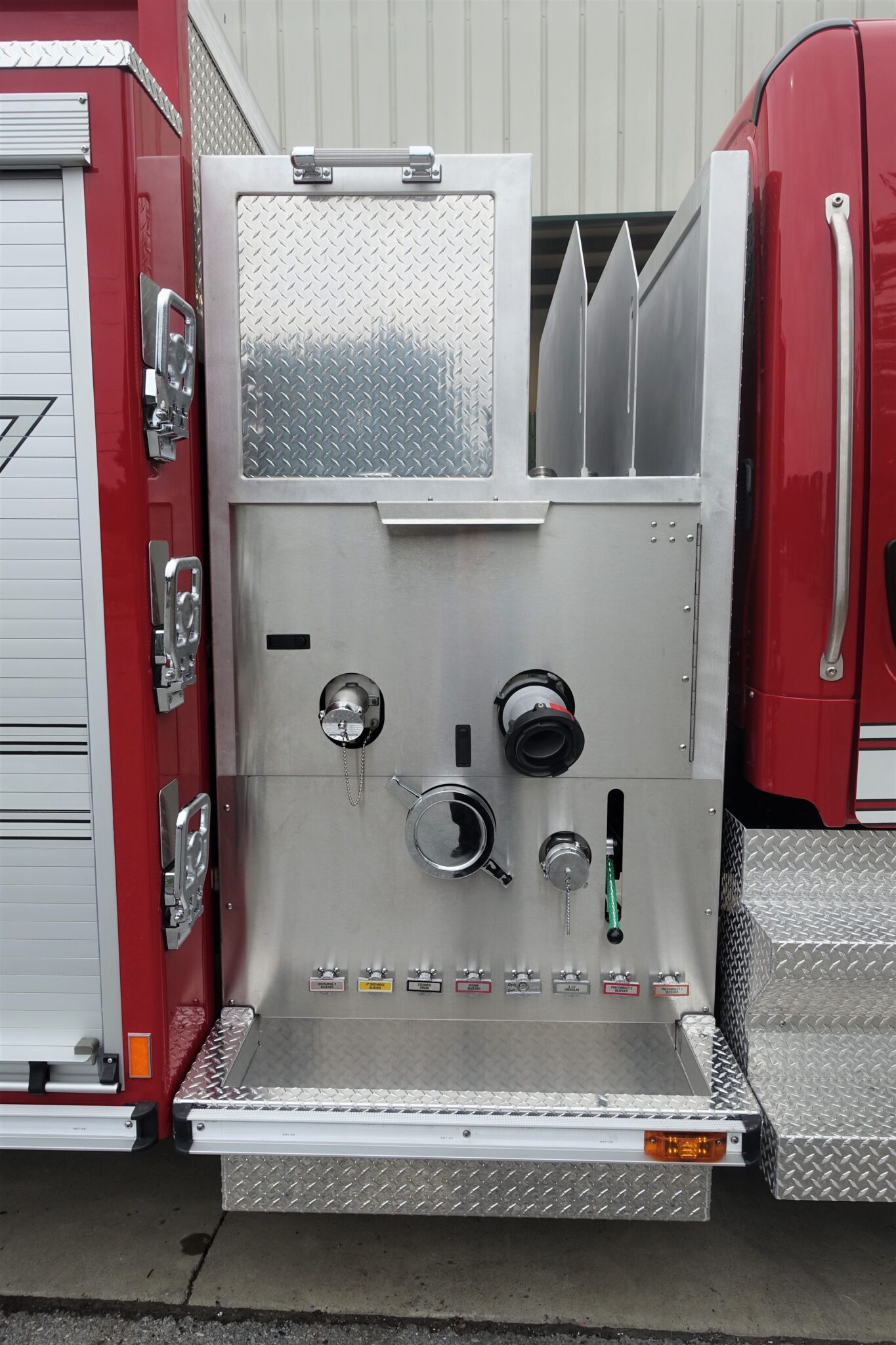

Side Mount Pump Operation
Pump Flow Tested and Certified
Class 1 Captain Electronic Pressure Governor Control
Class 1 Enfo IV Status Display
Hale Electric Primer Pump
Auxiliary Engine Cooler
Chrome Port Caps
3” Tank to Pump
4- Intakes
1- 21⁄2” Each Side of Pump House
1- 6” Each Side of Pump Panel
3- Crosslays Above Pump House
2- 11⁄2”
1- 2 1⁄2”
4- 2 1/2” Discharge Ports
2- Road Side Pump House
1- Curb Side Pump House

1- Left Rear
1- 4” Discharge Port Curb Side
1- 3” Deck Gun
1- 11⁄2” Tank Fill
1- 2 1⁄2” Direct tank Fill, Rear Compartment
Emergency Warning System
Front Lighting
4- Whelen 600 Series Red LED
Whelen 60” Freedom IV LED Lightbar
Side Lighting (Each Side)
2- Whelen 600 Series Red LED
2- TecNiq Red LED

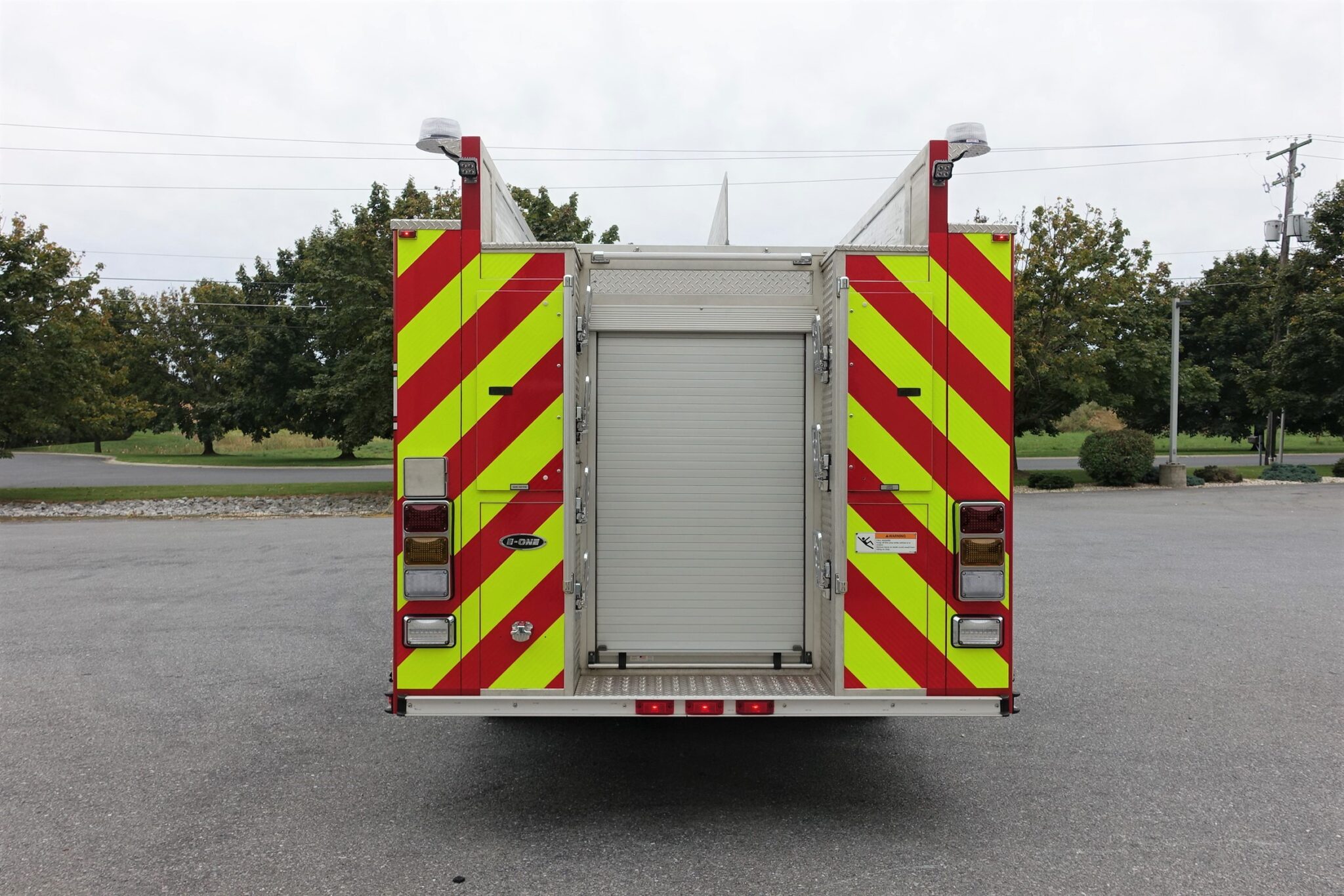

Rear Lighting
2- Whelen 600 Series Red LED
2- Whelen L31 Red LED Beacon
Federal Signal Q2B Mechanical Siren
(Driver and Officer Pedal Switch)

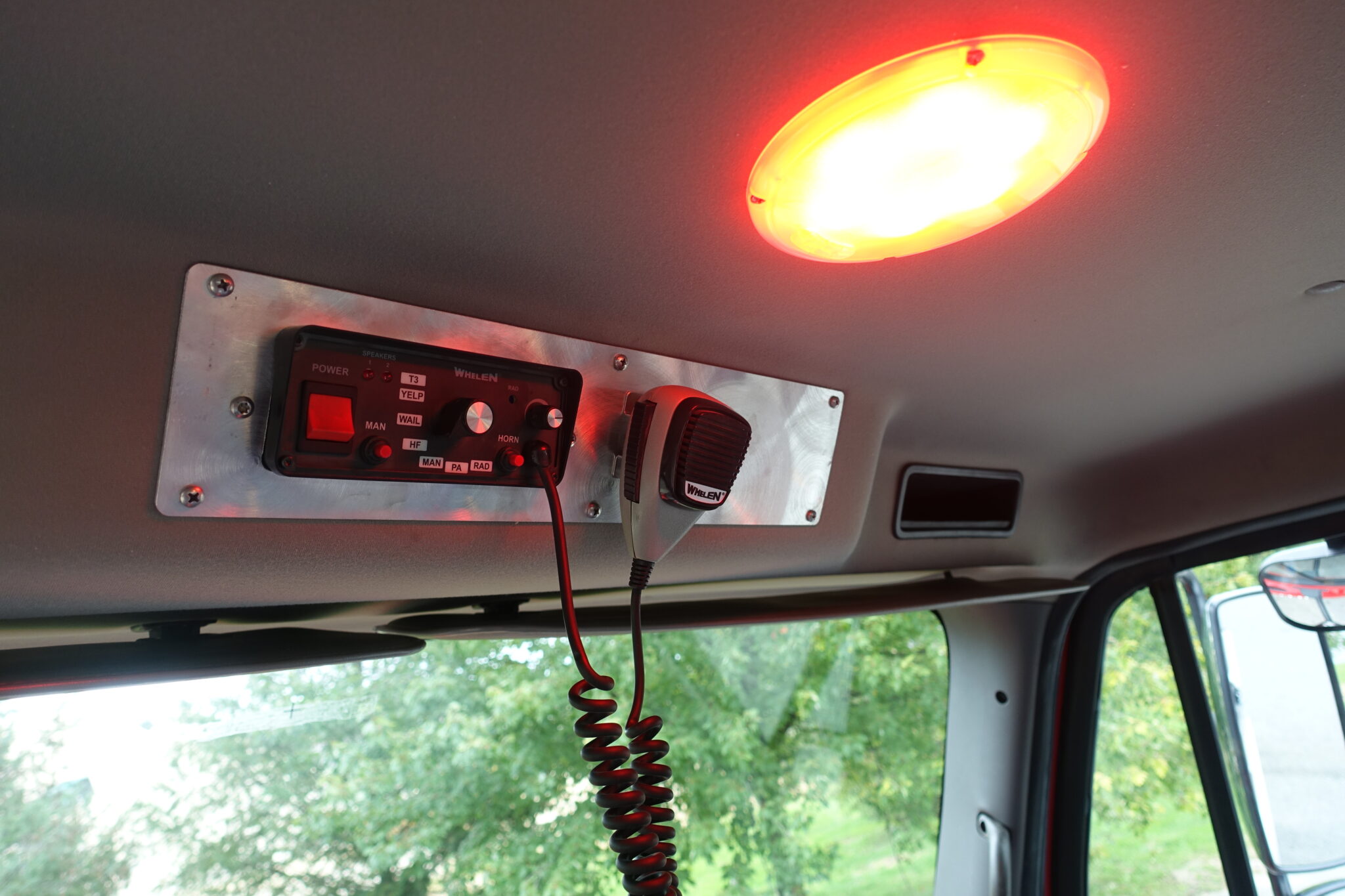

7 Function Whelen Electronic Siren
CPI Speakers in Bumper
2 – Grover Emergency Tone Air Horns
(Driver and Officer Pedal Switch)

Dimensions

27’ 5” Overall Length
10’ 1” Height
190” Wheelbase
GVWR 38,000 Lb
25,750 Miles
