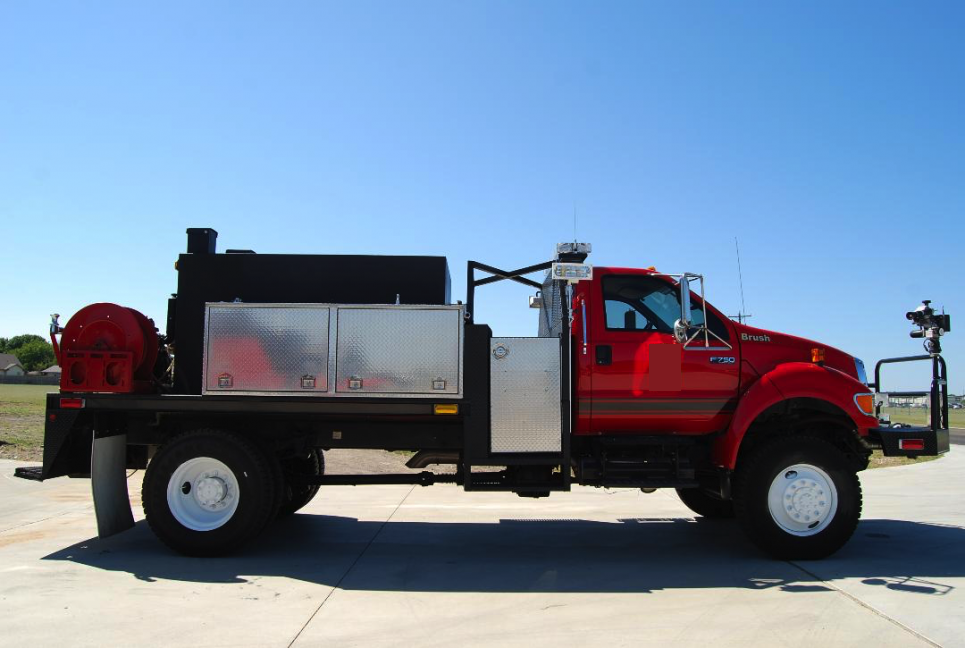

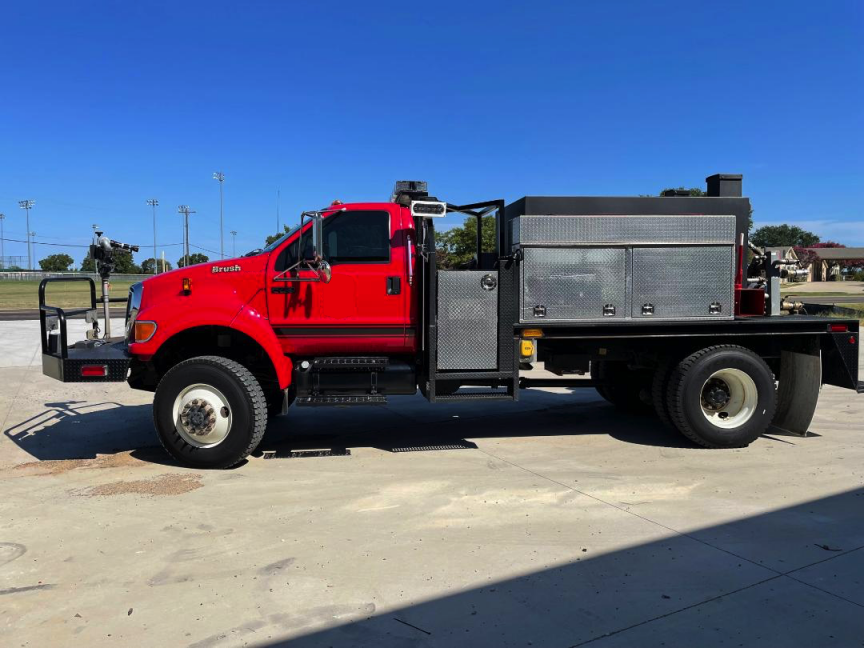

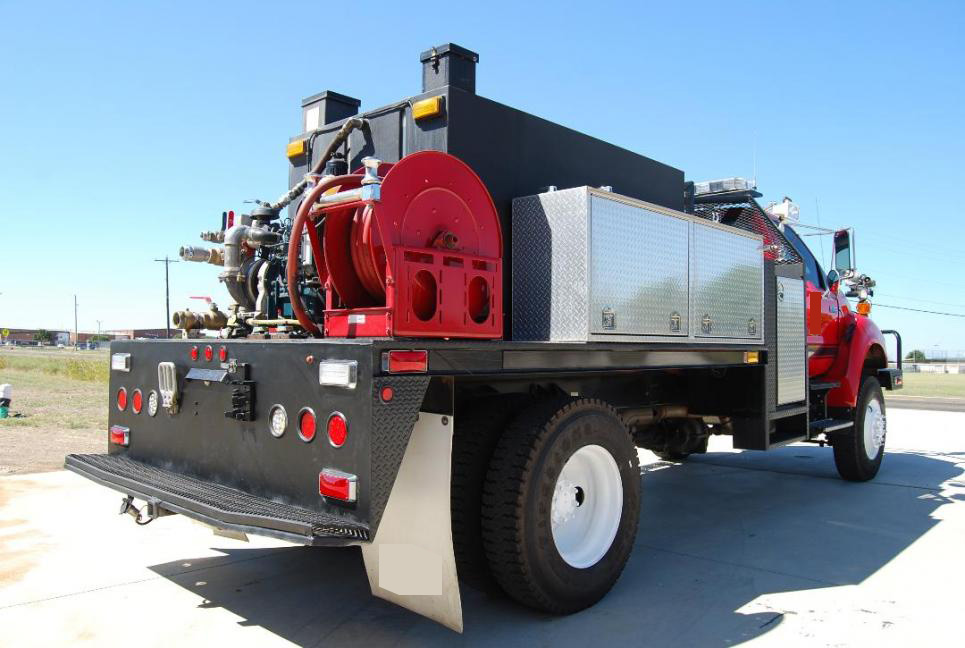

2010 Ford F750 4X4 Custom Wildland (W1236)

General

2010 Ford F750
Custom built
300Hp 6.7 Cummins Diesel
Allison 2500 5 speed automatic
Air Brakes

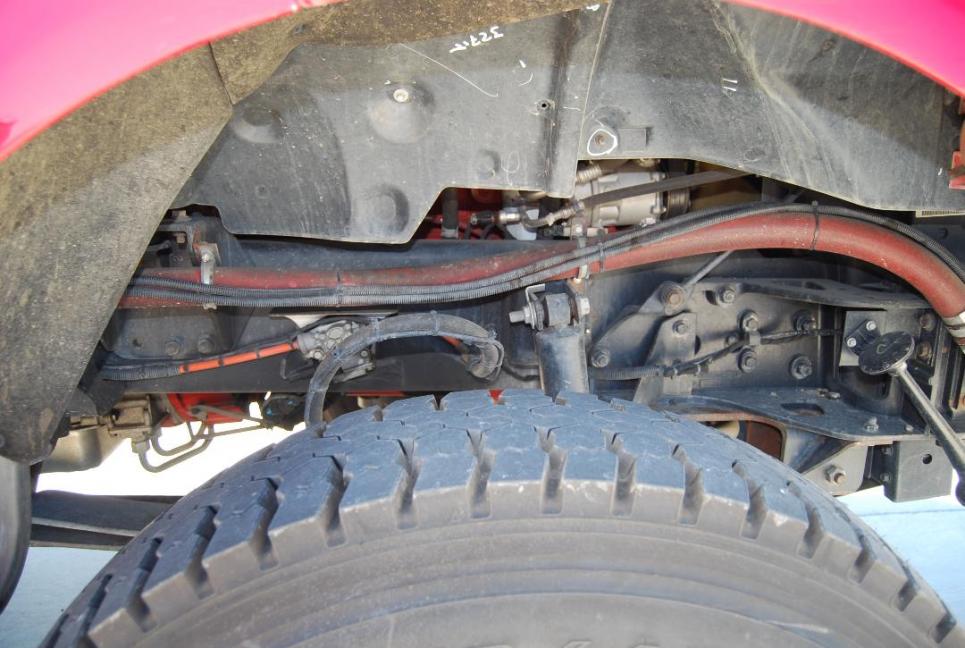

4×4 (After market Merritor system installed with Hi/Low options)

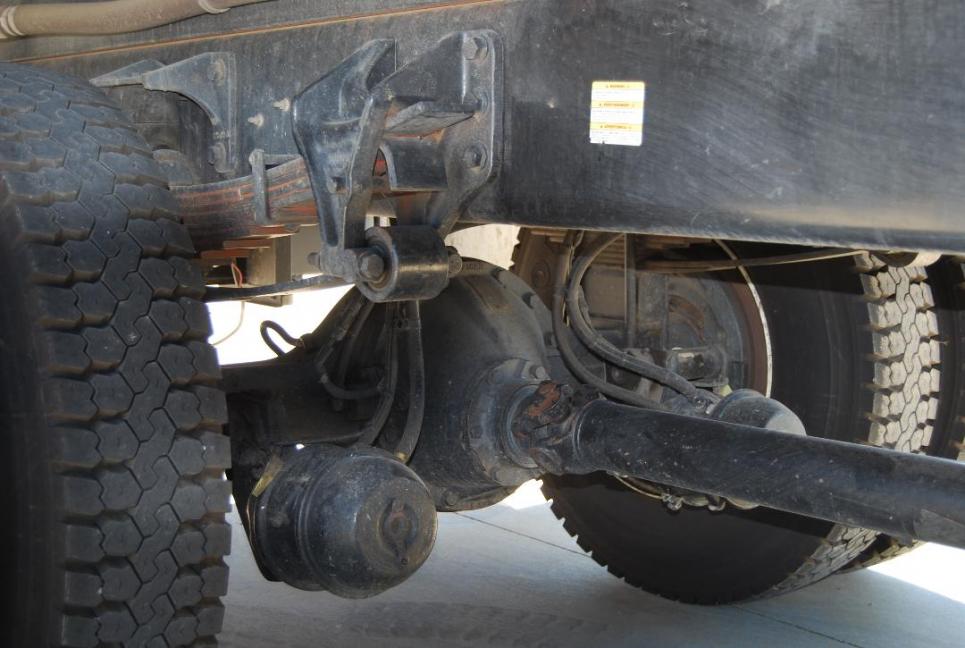

Factory Spicer rear axle with Merritor transfer case and Merritor front axle
Transfer case is operated with electric air operated silinoids.

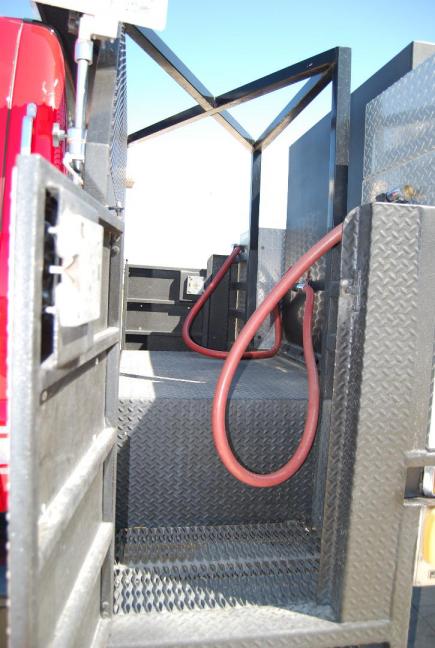

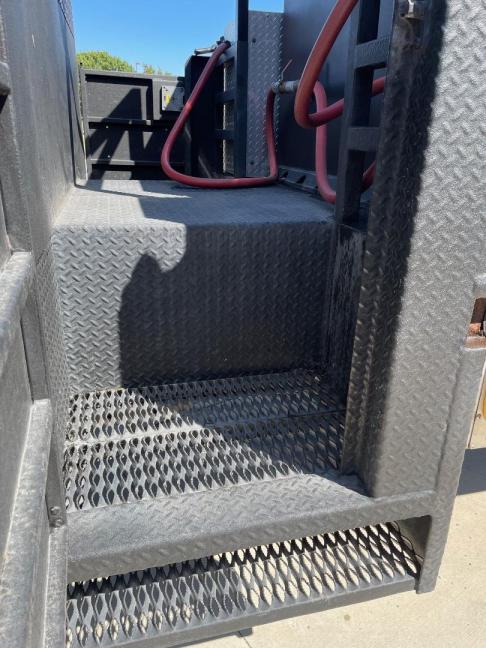

Two whip lines in caged bed riding area.

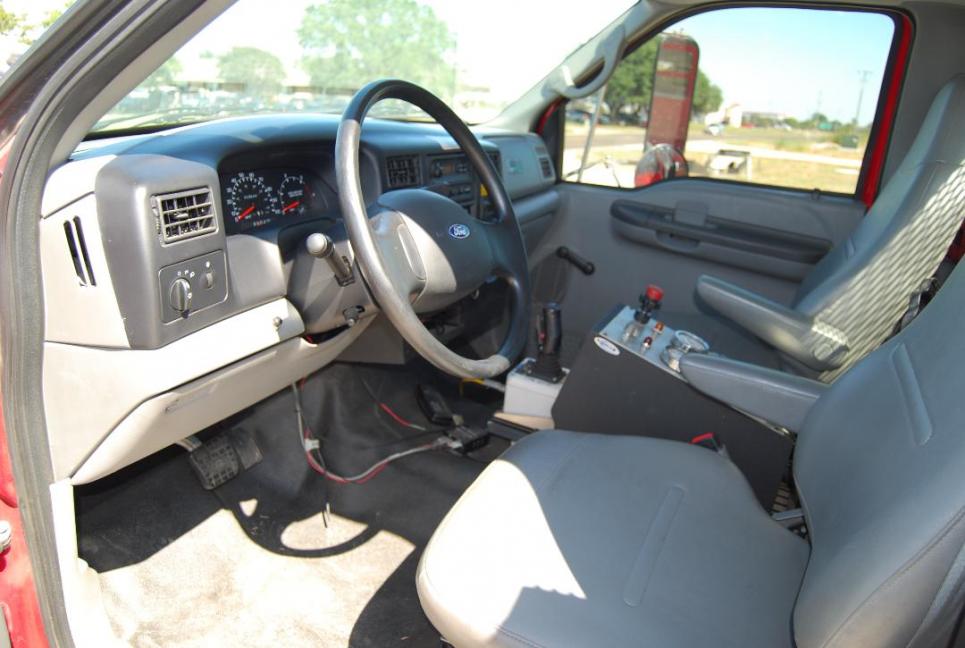

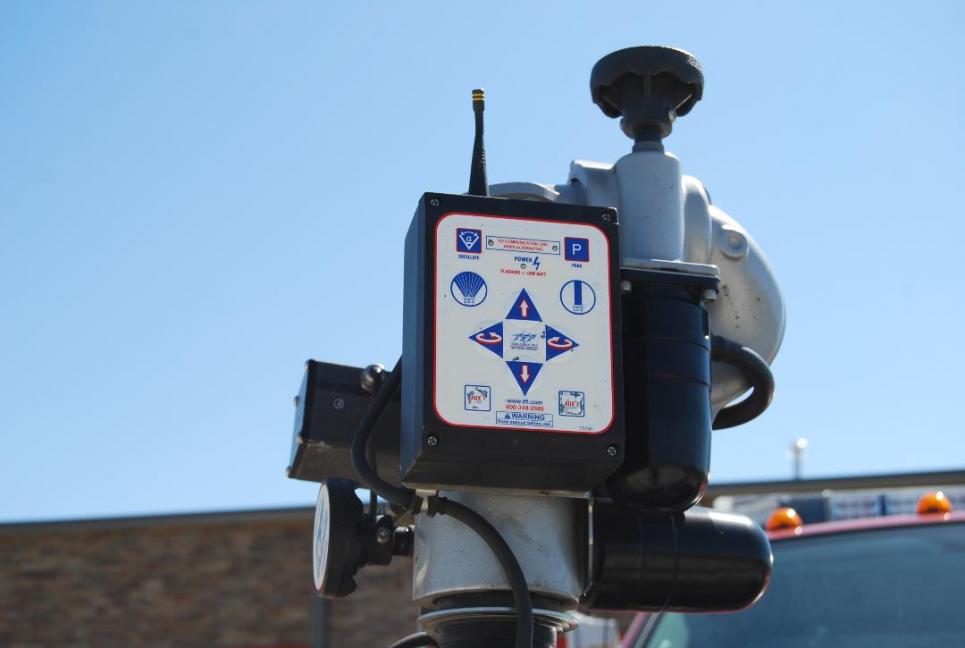

TFT Tornado Remote controlled 500 GPM capable monitor nozzle mounted on front bumper. Control is in cab accessible to driver or passenger.

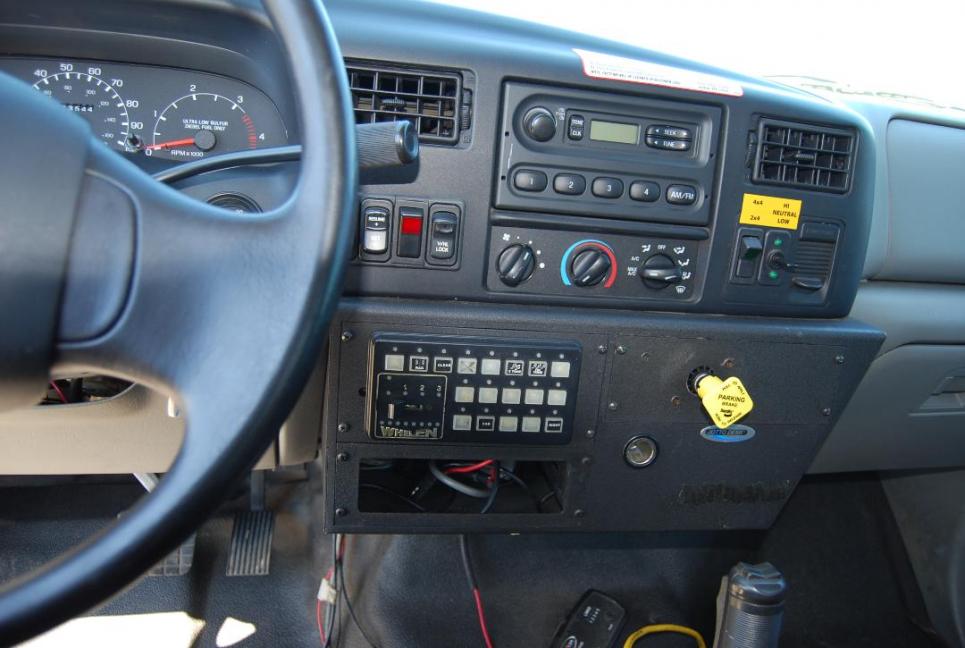

Whelen LED Lighting package with controller and siren.

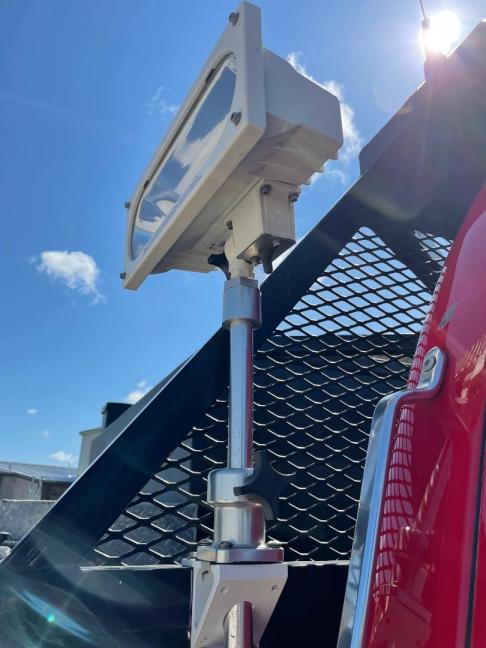

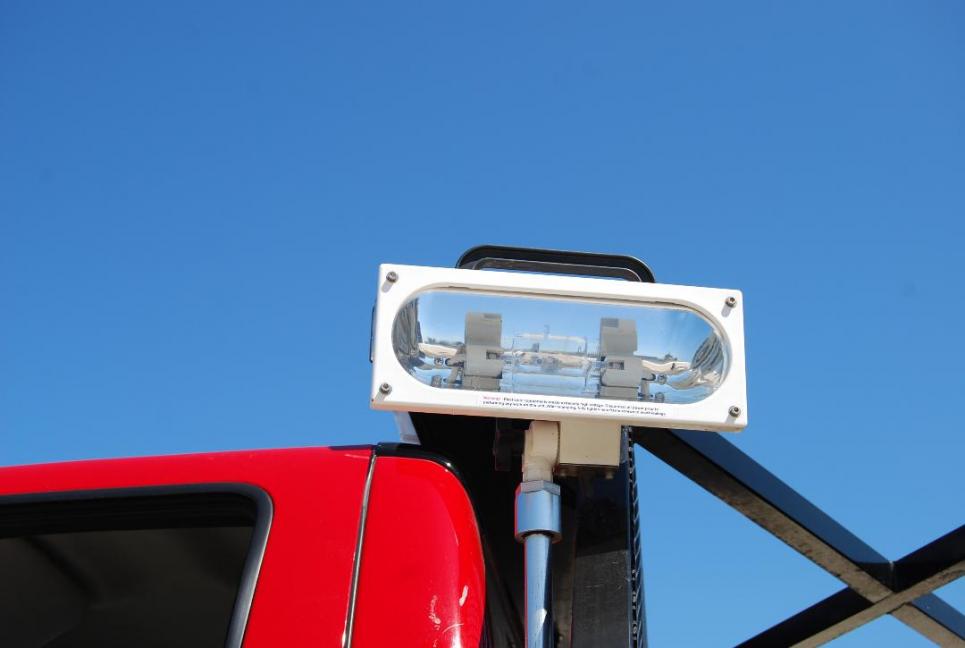

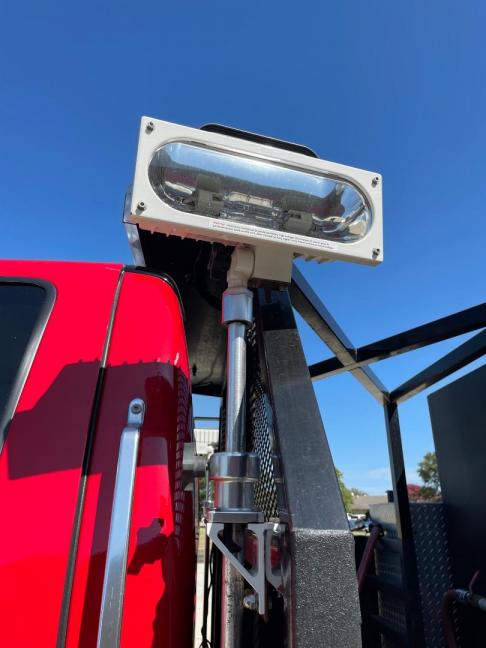

Two hard mounted telescoping HID scene lights on bed.
Kussmaul 30 Amp Model 11 battery conditioner.

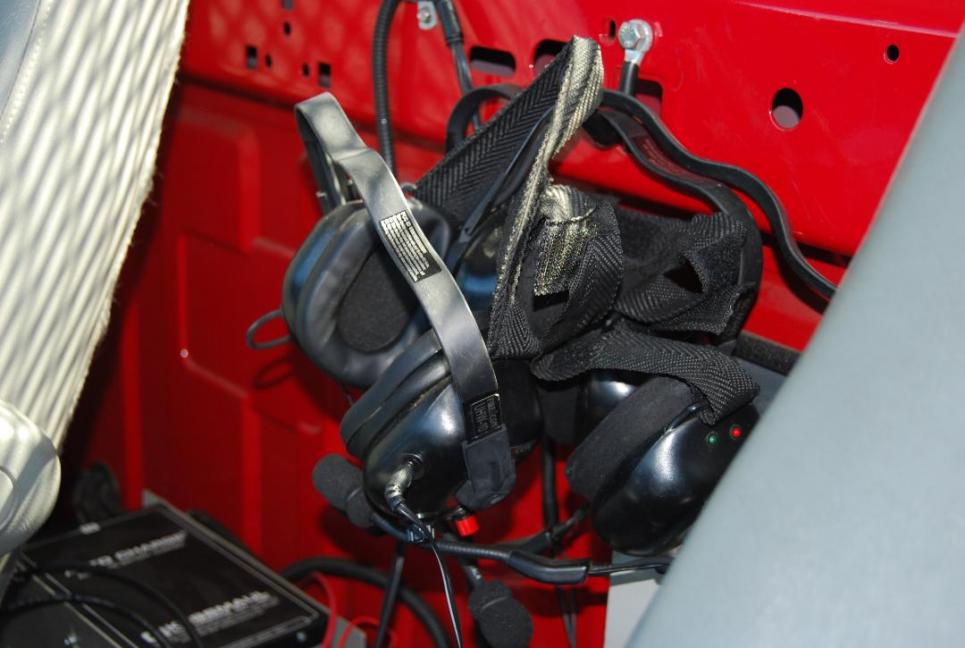

Fire Com wireless headset communication system with two headsets.
Warn 16.5 ton winch
5.29 axle ratio

*Needs new air solenoid on transfer case for Hi/Low operation.
2×4 and 4×4 operation functioning normal.

Pump and Tank

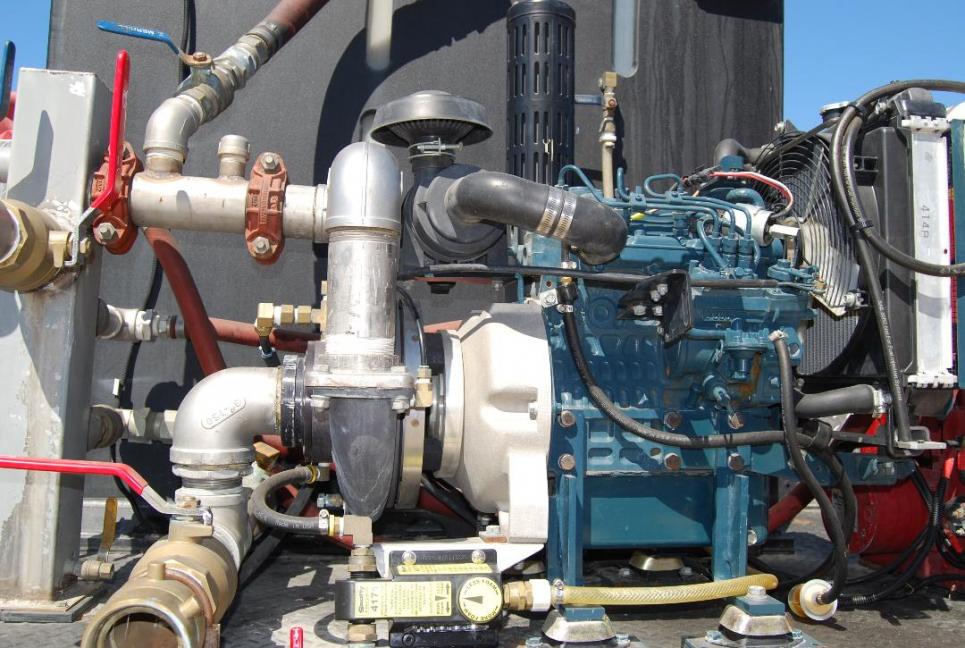

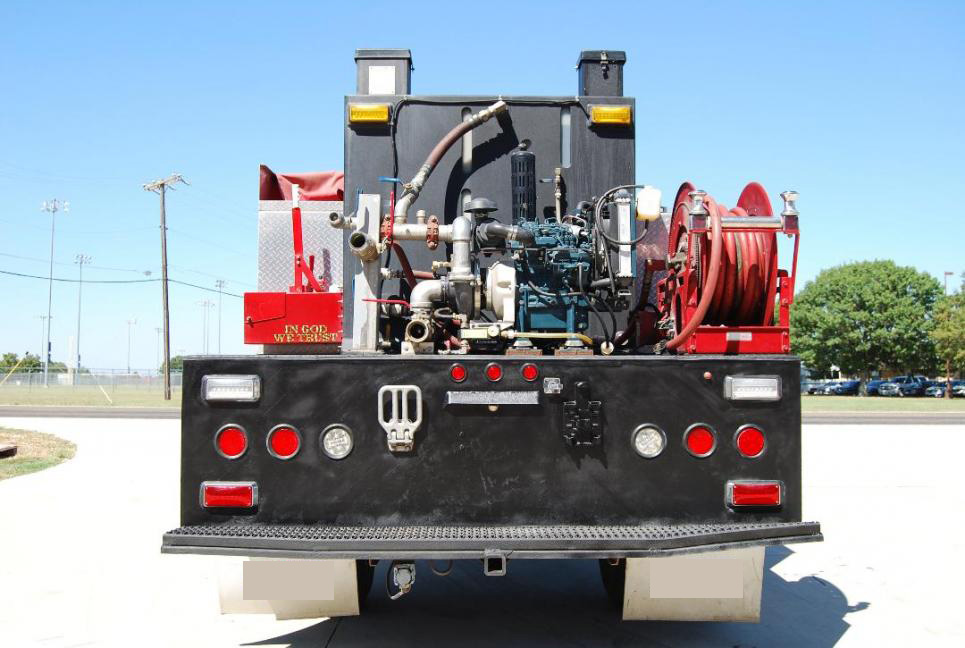

320 GPM Rowe Pump with 3cyl 25hp Kubota Diesel

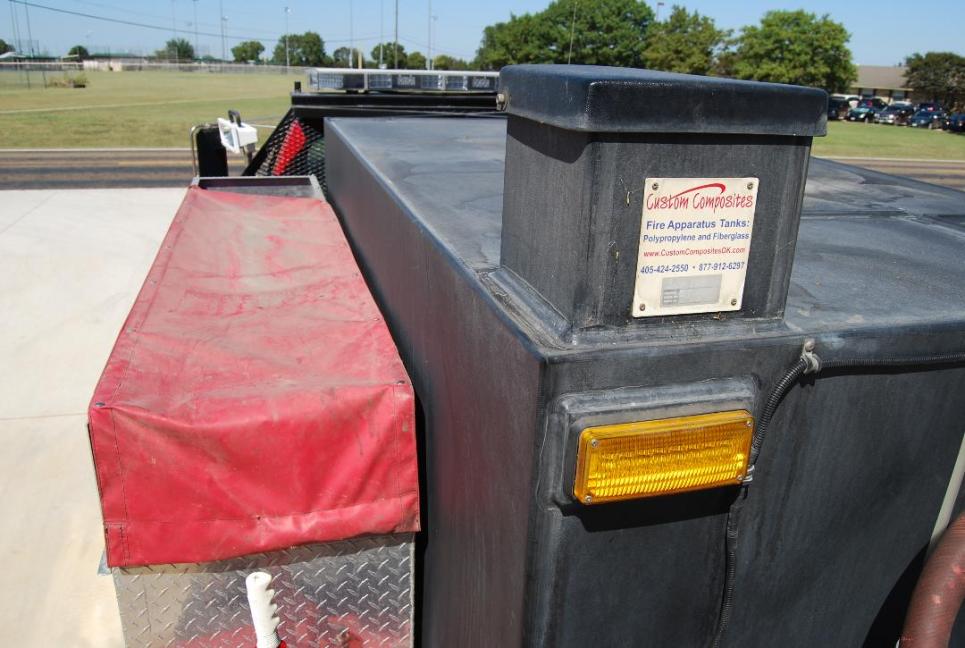

1000 Gallon Poly Tank

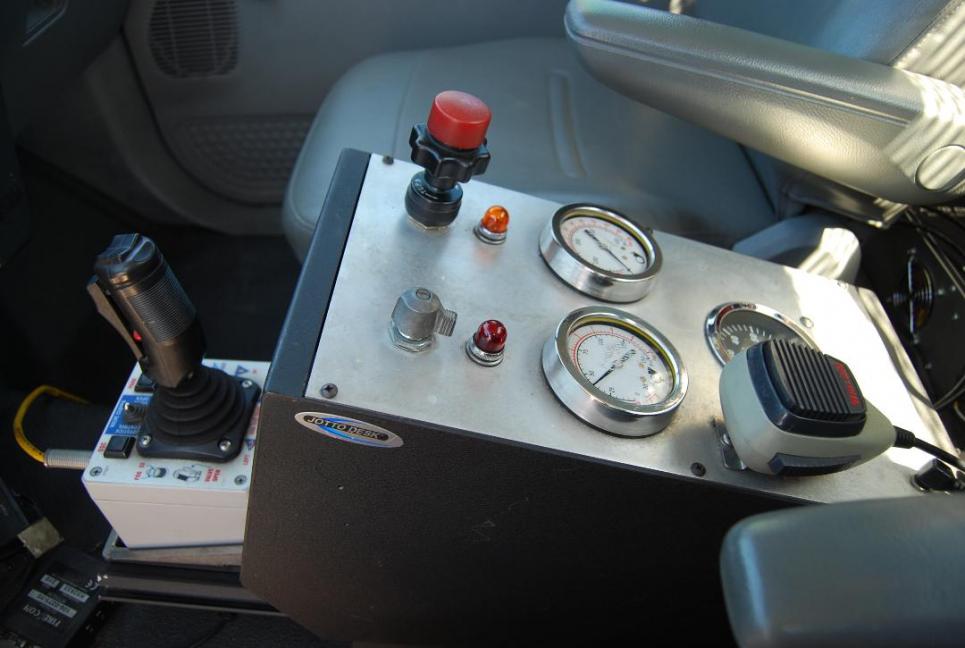

Auxiliary motor controlled in cab with manual valves on pump manifold
Fuel supply for pump from vehicle main tank
Water manifold from pump is stainless with brass valves
Motor and pump were replaced in 2017
Hour meter for pump shows 262hrs
Pump was replaced without hour meter adjustment at 205hrs
Actual hours on pump motor are approx 60

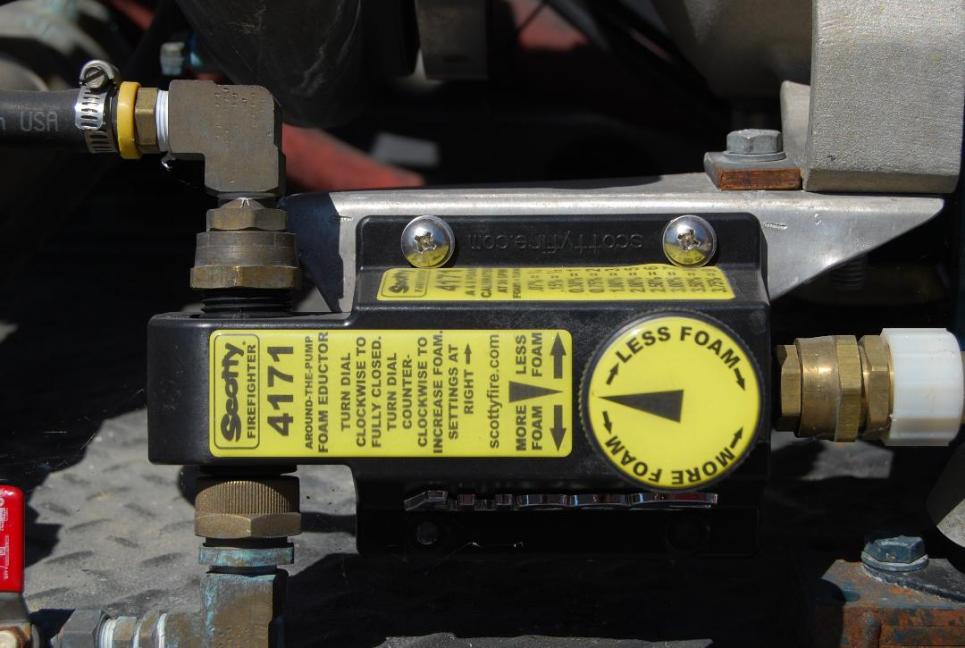

Scotty 4171 Foam system plumbed directly into pump.

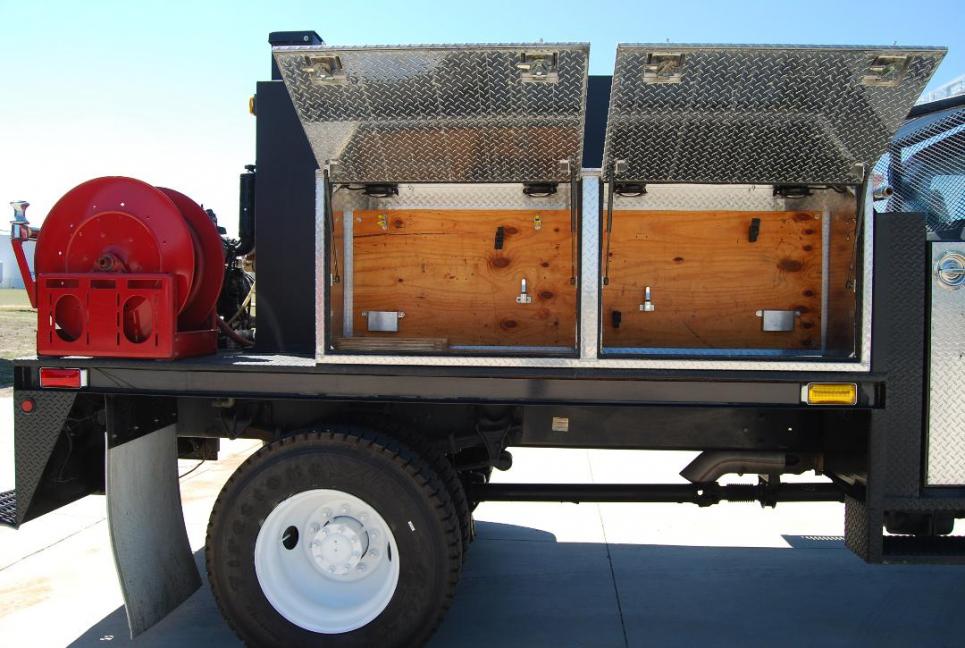

Hannay Reel with 100’ 1” hose on rear

Kubota Diesel pump – plumbed into trucks fuel tank
1000 gallon water
20 gallons of foam

Dimensions

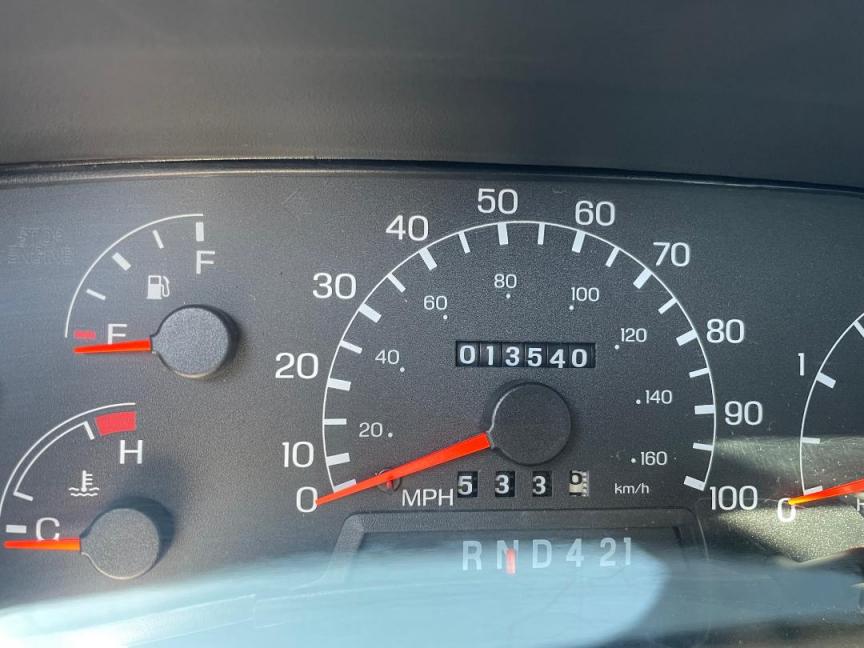

13,530 Miles
