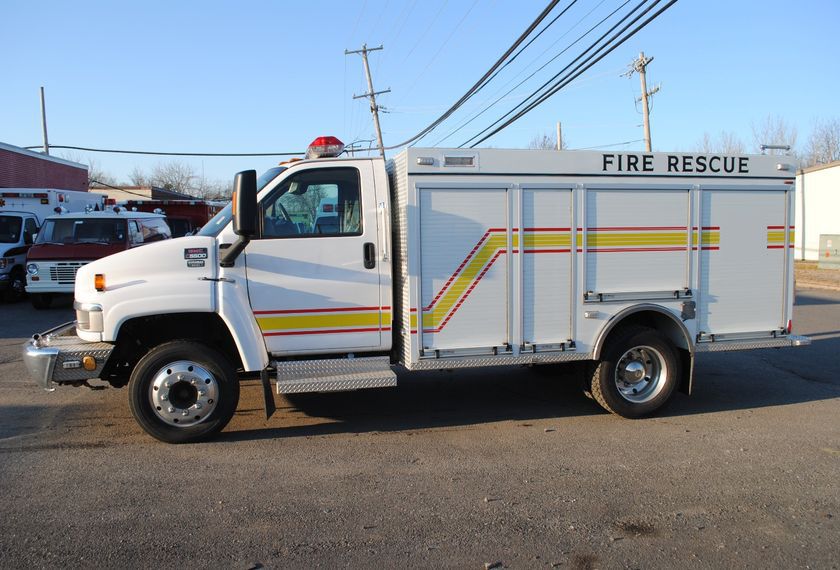

2008 Chevrolet Pierce Mini Rescue Pumper 750/300 (E3686)

General

2008 GMC 5500 Conventional Cab/Chassis with Pierce Manufacturing body

Vehicle Description:
-6.6L Dura-max Diesel
-Allison 6-speed automatic transmission
-4.78:1 Rear Axle ratio with slip differential
-4-wheel ABS Brakes
-Manual Rear wheel Parking brake
-32 Gallon rear fuel tank
-Seating for (2) personnel
-Tile steering wheel
-Electric remote control heated mirrors
-Rear vision camera system
-Extended front bumper
-Fully enclosed body w/roll-up doors

Generator and Electrical

-10,000 Watt 120/240 v Pto driven hydraulic generator
-3,000 Watt 120 v Light tower
-150 Watt 12v HTD Flood light-(1) each side
-A/C Breaker panel in D.S #2 Compartment
-(1) 120v A/C Duplex Outlet in D.S Center Compartment
-(1) 120v A/C Duplex Outlet in Rear Compartment
-(1) 120v A/C Duplex Outlet in P.S. Center Compartment
-(1) 120v A/C Duplex Outlet in Rear Compartment

Pump and Tank

-Hale Model MG 750 GPM single stage midship mounted fire pump
-Fire Research “Pump Boss ” electronic throttle/pressure governor
-Foam Pro Model 200i Class “A ” foam proportioner system
-Pierce “Hercules ” Compressed Air Foam system with V-Max 50 CFM Engine mounted air
-(1) 2.50 ” Outlet as D.S Rear (with 2.50 ” to 2-1.50 ” Gated Wye)
-(1) 2.50 ” Outlet at D.S Pump Panel
-(1) 1.50 ” Swivel Outlet on Extended front bumper
-(1) 2.50 ” Vertical Outlet for use with removable TFT bumper turret

-300 Gallon UPF Polypropylene Water Tank
-30 Gallon Integral Class “A ” foam tank
-4.00 ” tank to pump connection
-Manual/Automatic 2.50 ” rear tank connection

Pre-Connect and Supply Hose Loads:

-(1) 50 ft 1.50 ” Pre-Connect in Extended front bumper compartment
-(1) 100 ft 1.50 ” Pre-Connect in Pump panel compartment
-(1) 150 ft 1.75 ” Pre-Connect in D.S Rear hose bed
-(1) 200 ft 1.75 ” Pre-Connect in P.S Rear hose bed
-(1) 500 ft 2.50 ” Supple Hose in center of rear hose bed

Dimensions

Miles: 32,336
Length: 276 ”
Width: 94 “
Height: 100 “
Wheelbase: 152 “
