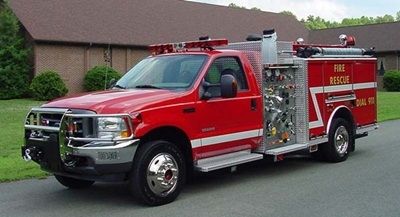

2004 4×4 Ford F550 KME Mini-Pumper 500/300/10 (W0772)

General

Engine – 6.0 L Turbo Diesel (Has New Engine w/ 2 Year Warranty)
Trans. – 5-Speed Automatic
Brakes – 4-wheel anti-lock
GVWR – 17,500 lbs.
Extras – – Air Conditioner
– AM/FM Stereo
– Electric Windows & Doors
Body: KME Aluminum Rescue Mini-Pumper Body

Equipment:
(1) 16′ Aluminum “A” Combination Ladder – passenger side cat walk
(2) 4-1/2″ x 8′ Hard Suction Hoses – driver side cat walk
(1) 4-1/2″ Floating Strainer
(2) 2-1/2″ x 8′ Hard Suction Hoses – located within treadplate drop down door mounted in right side of hose bed area
(1) 4-1/2″ Barrel Strainer
(2) Hydrant & Spanner Wrench Sets
(2) Streamlight Orange Lite Boxes
(1) 4.5″ x 5″ Double Female Adapter
(1) 6′ Fiberglass Pike Pole mounted in Aluminum Pike Pole Storage Tube
(2) Wheel Chocs
(*) See Booster Hose & Nozzle listed for the Booster Reel

Warning Lights & Siren:
‘¿½ Whelen Edge 9000 60″ Strobe Light Bar
‘¿½ (1) Federal E-Q2B Digital Siren w/ (2) 100 watt Electronic Siren Speakers recess mounted in front bumper
‘¿½ (2) Strobe Warning Lights – at grille
‘¿½ (2) Strobe Warning Lights – (1) on each side of fender
‘¿½ (2) Strobe Warning Lights – (1) on each side beneath side running board
‘¿½ (2) Strobe Warning Lights – (1) on each side at rear fender
‘¿½ (2) Strobe Warning Lights – at rear directly below body tail lights
‘¿½ (2) Whelen Rotating Beacon Lights – on rear stanchions
‘¿½ (1) Whelen LED Rear Directional Light Bar

Scene Lights:
(2) Fire Research Optimum 12 volt flood lights – mounted in dunnage area

Pump

Pump: 500 GPM Hale MGAP Single Stage Mid-Ship Pump powerer by a Deutz 100 HP Diesel Engine.
– (Capable of Pump & Roll with a steady stream as any speed).
– The Passenger Side has a 30″H x Full Width Hinged Access Door
Foam System FoamPro Model 1600 Direct Injection Foam System
– Plumbed to Both Crosslays and Booster Reel
Tank: 300 Gallons w/ 10 Gallon Foam Cell
Plumbing (All Stainless Steel Piping):
‘¿½ Plumbing has a Hale Thermal Relief Valve and a Elkhart Suction Relief Valve
Over Pump Panel
(2) Live Crosslays, each with a capacity for 200′ of 1-3/4″ Hose
Diver Side
(1) 4-1/2″ Suction
(1) 2-1/2″ Auxiliary Suction
(2) 2-1/2″ Discharges
Passenger Side
(1) 4-1/2″ Suction
(1) 2-1/2″ Auxiliary Suction

Dimensions

Driver Side (Painted Roll-Up Doors)
(1) Compartment ahead of wheel well w/ (1) Adjustable Aluminum Shelf
Dimensions: 50″H x 24’3/4″ W x 24″D
(1) Compartment over wheel well w/ (1) Adjustable Aluminum Shelf
Dimensions: 25″H x 44.5″W x 24″D
(1) Compartment behind wheel well w/ (1) Adjustable Aluminum Shelf
Dimensions: 50″H x 39-3/4″W x 24″D
Passenger Side (Painted Roll-Up Doors)
(1) Compartment ahead of wheel well w/ (1) Adjustable Aluminum Shelf
Dimensions: 50″H x 24’3/4″ W x 24″D
(1) Compartment over wheel well w/ (1) Adjustable Aluminum Shelf
Dimensions: 25″H x 44.5″W x 24″D
(1) Compartment behind wheel well w/ (1) Vertical Pull-out Tool Board
Dimensions: 50″H x 39-3/4″W x 24″D
Rear (Anodized Roll-Up Door)
(1) Compartment at Center w/ Electric Booster mounted in it
Dimensions: 26″H x 40″W x 24″D
Hose Bed
Has a capacity to hold 350′ of 2-1/2″ hose
Pull-Out Lower Rear Step Dimensions: 72″ Wide x 12″ Deep
