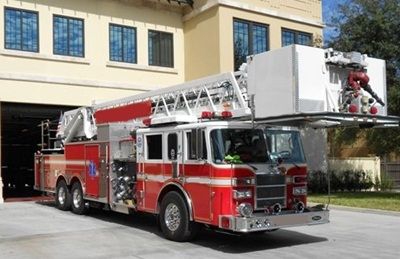

2003 Pierce Dash 100′ 2000/ 300 (L0531)

General

Detroit Diesel Series 60 14.0L electronically controlled
Allison 5 speed Automatic
Command Zone Information Centers (5) ‘ Drivers area, pump panel, trucks rear, turntable &
basket
AERIAL:
Aerial PTO Hours: 931.6
100′ ladder platform
Platform rated at 1000lbs dry
Inâ€bucket eye hooks rated at 300lbs LyfeEye accessory mounting brackets (2) rated at 300lbs each
Under platform hooks (2) rated at 500lbs each
Roof Ladders ‘ 16′, 16′ & 20’
Folding Ladder ‘ 10’
Extension Ladders ‘ 14′, 24′ & 35’

Pump

Hale QMAXâ€200 2000 GPM Single Stage Pump Hours: 240
300 gallon UPF Polyâ€Tank IIE
Relief Valve Control

Electrical

8 kw generator

Dimensions

Mileage: 41088
Overall Length = 47′ 10’¿½ from edge of bucket to rear bumper
Overall Height = 11′ 9’¿½ approximately, ground to top of basket
Vehicle Width with outriggers deployed = 18′
Wheelbase: 250’¿½
GVWR ‘ 76,800lbs GAWR Front ‘ 22,800lbs GAWR Rear ‘ 54,000lbs
Angle of approach = Meets NFPA minimum of 8 degrees
Angle of departure = Meets NFPA minimum of 8 degrees

Fenton Fire Equipment Inc. is not the owner of the aforementioned Vehicle and or equipment. As such we are unable to guarantee the accuracy of the information provided above. Before purchasing any equipment, it is imperative that you confirm with the vendors that the equipment in question meets your required needs. Fenton Fire Equipment Inc. is not responsible for the condition of any of the vehicles and/or equipment listed on our site. We recommend a third-party inspection of the vehicle and/or equipment be performed prior to purchase.
