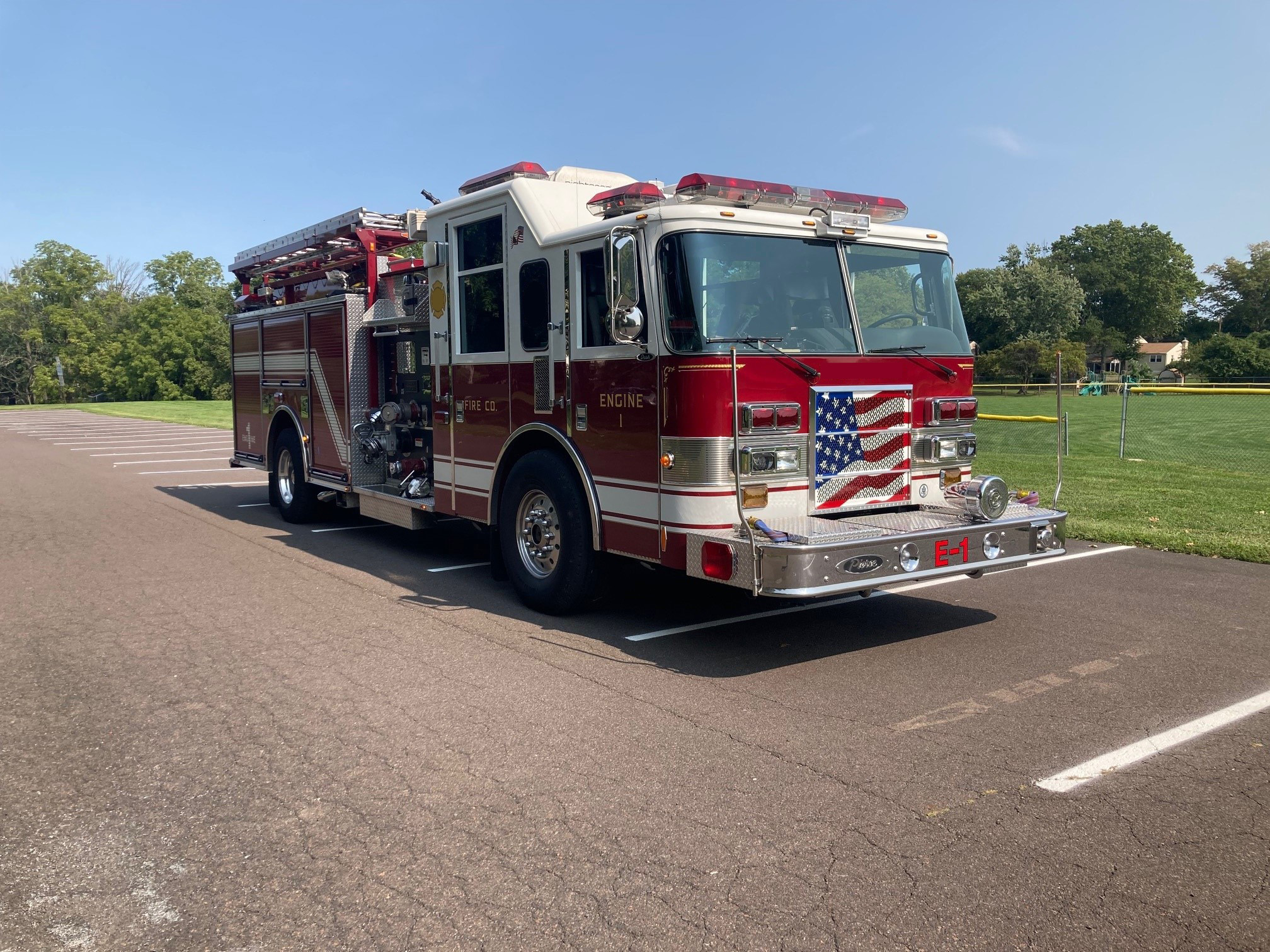

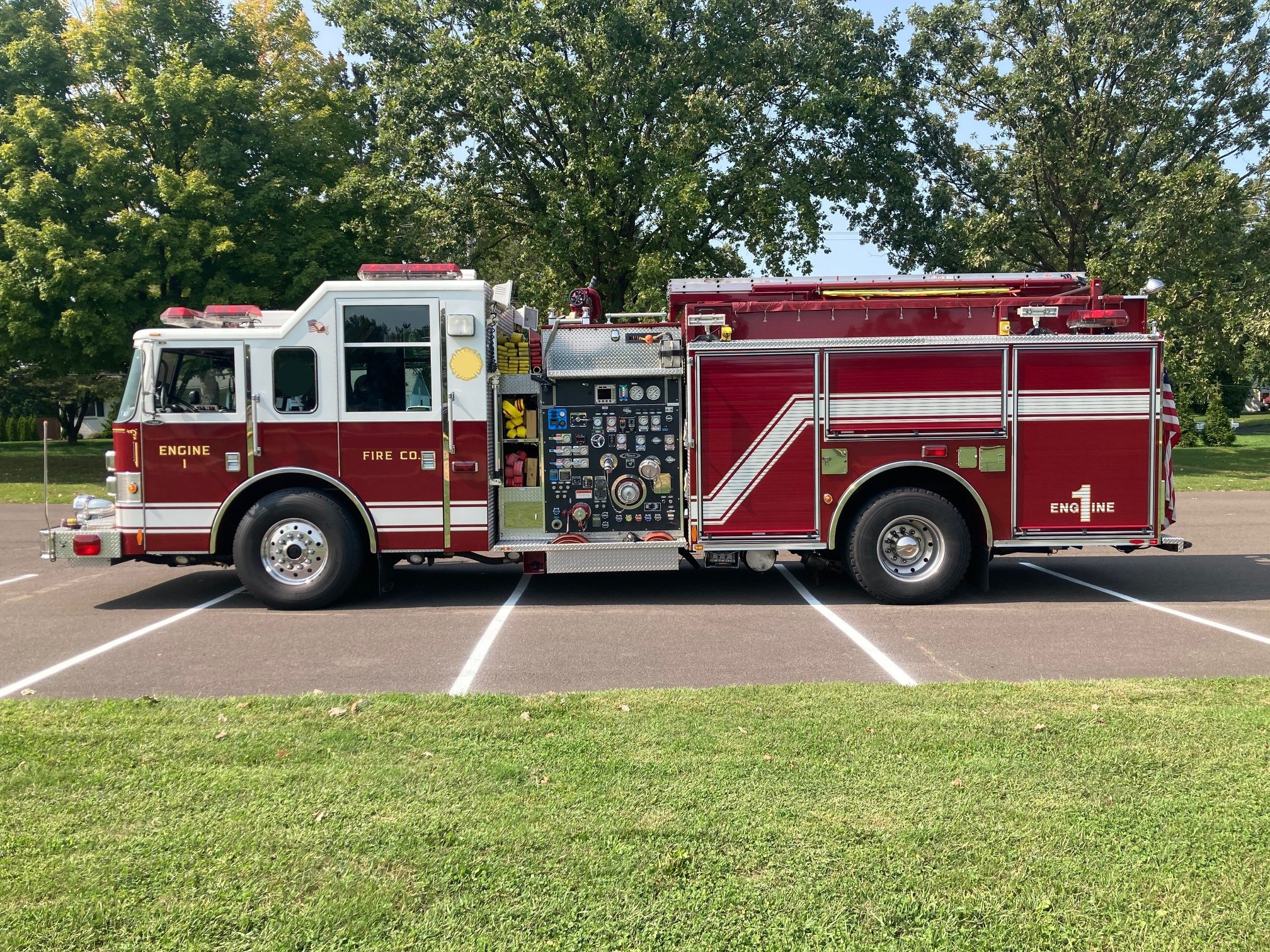

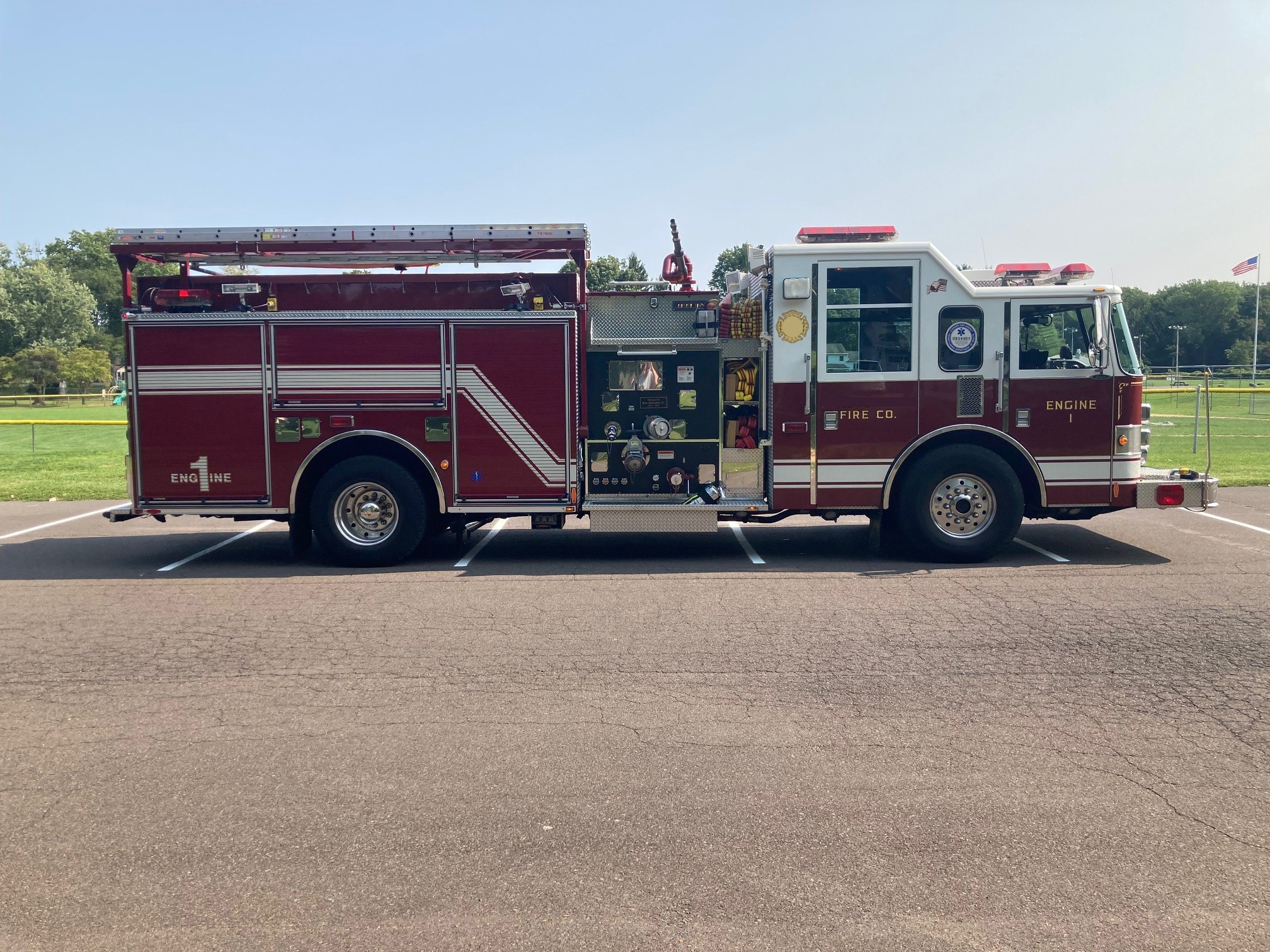

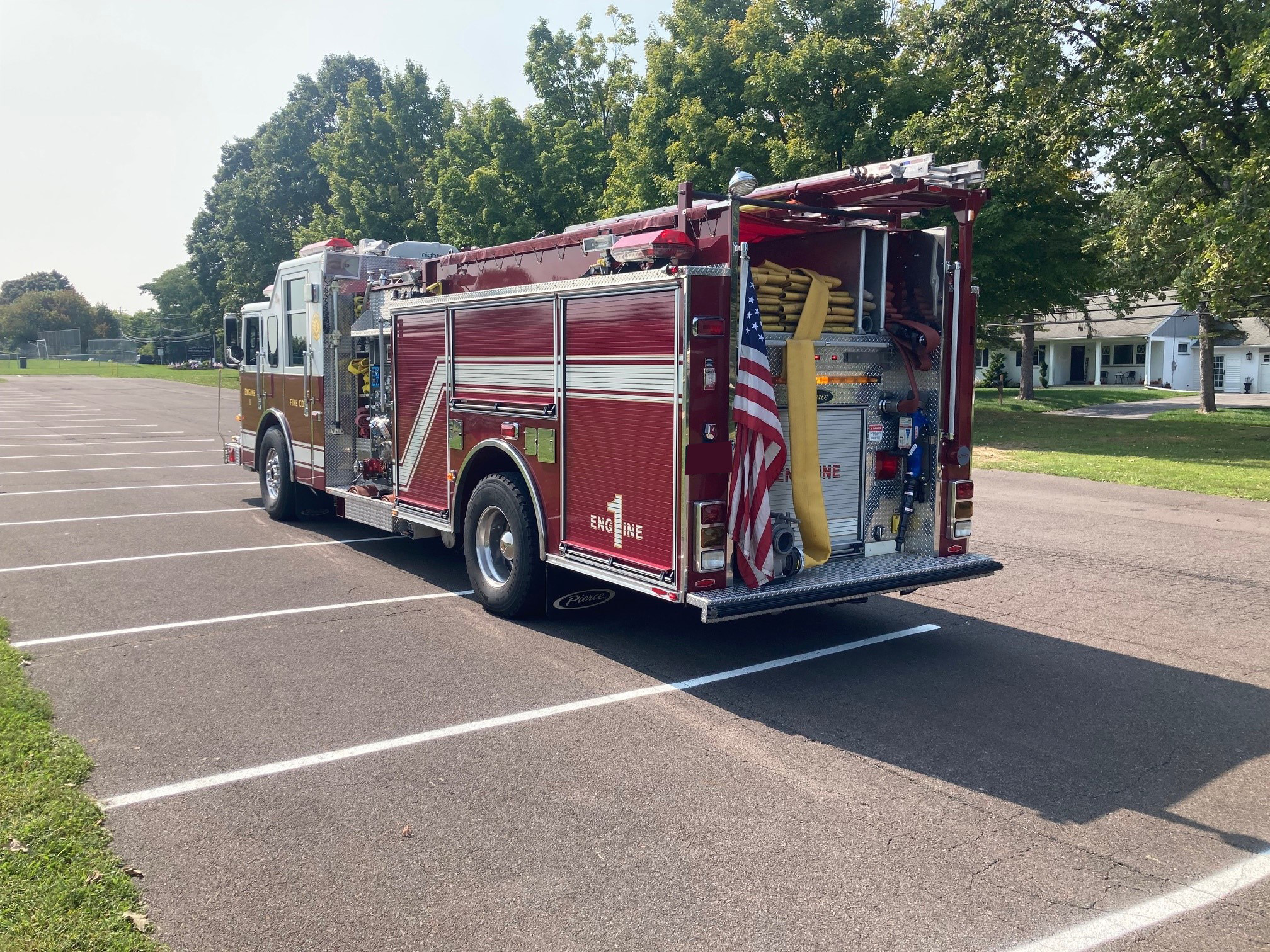

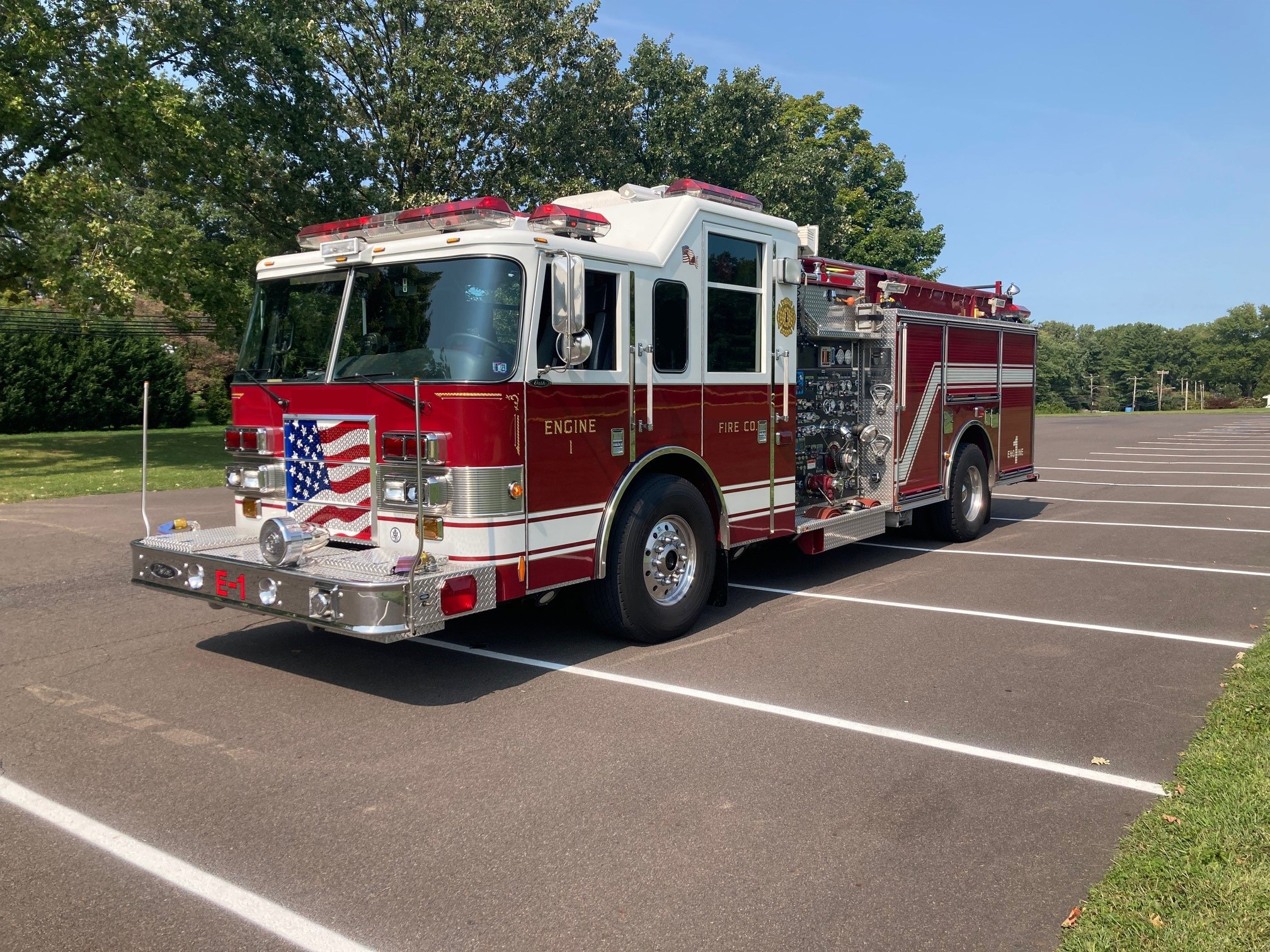

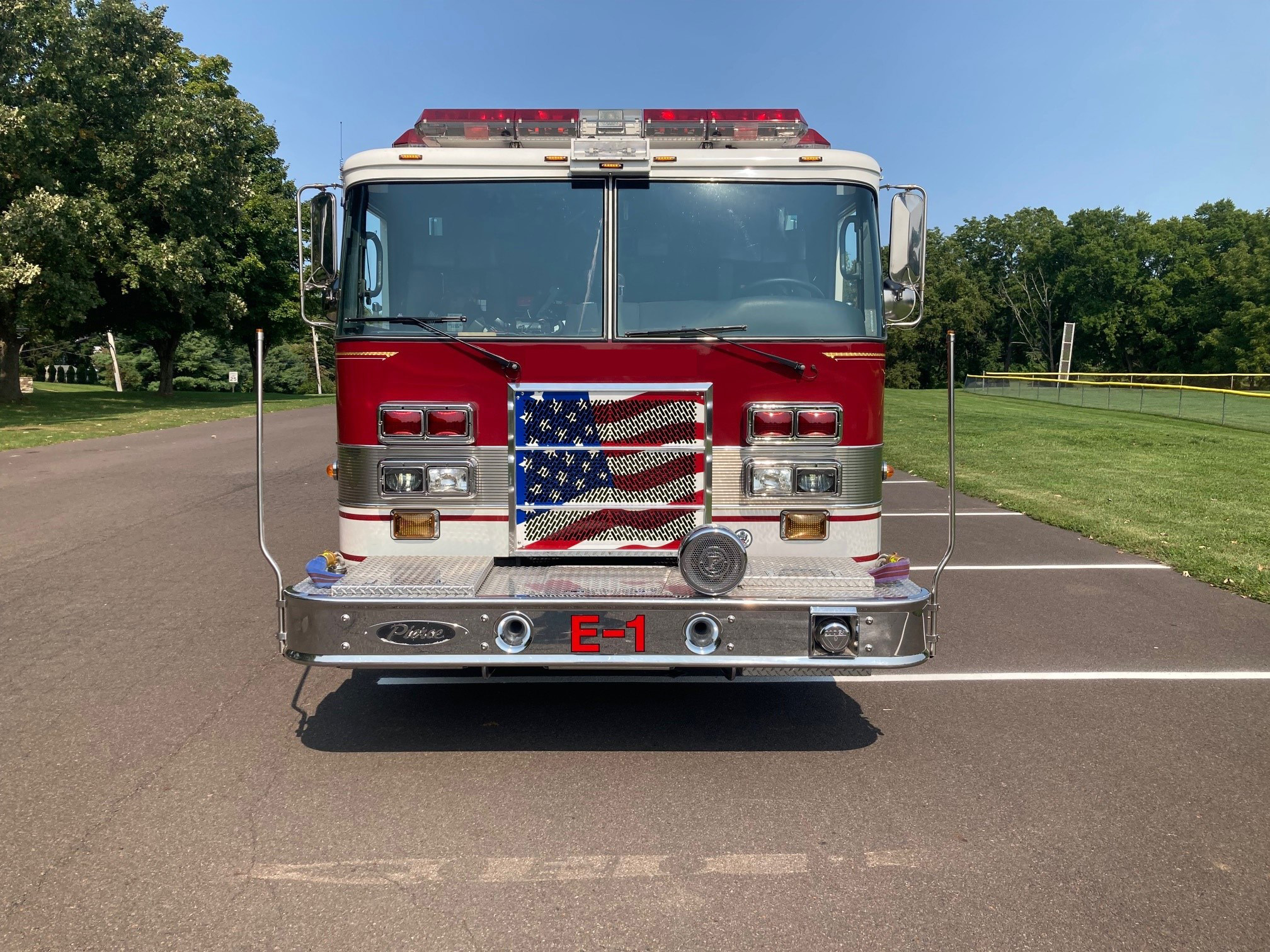

2002 Pierce Dash Pumper 2000/750/50 (E4567)

General

Low Miles, Excellent Condition and Well Maintained
2002 Pierce Dash
DDC Series 60 Diesel
Automatic

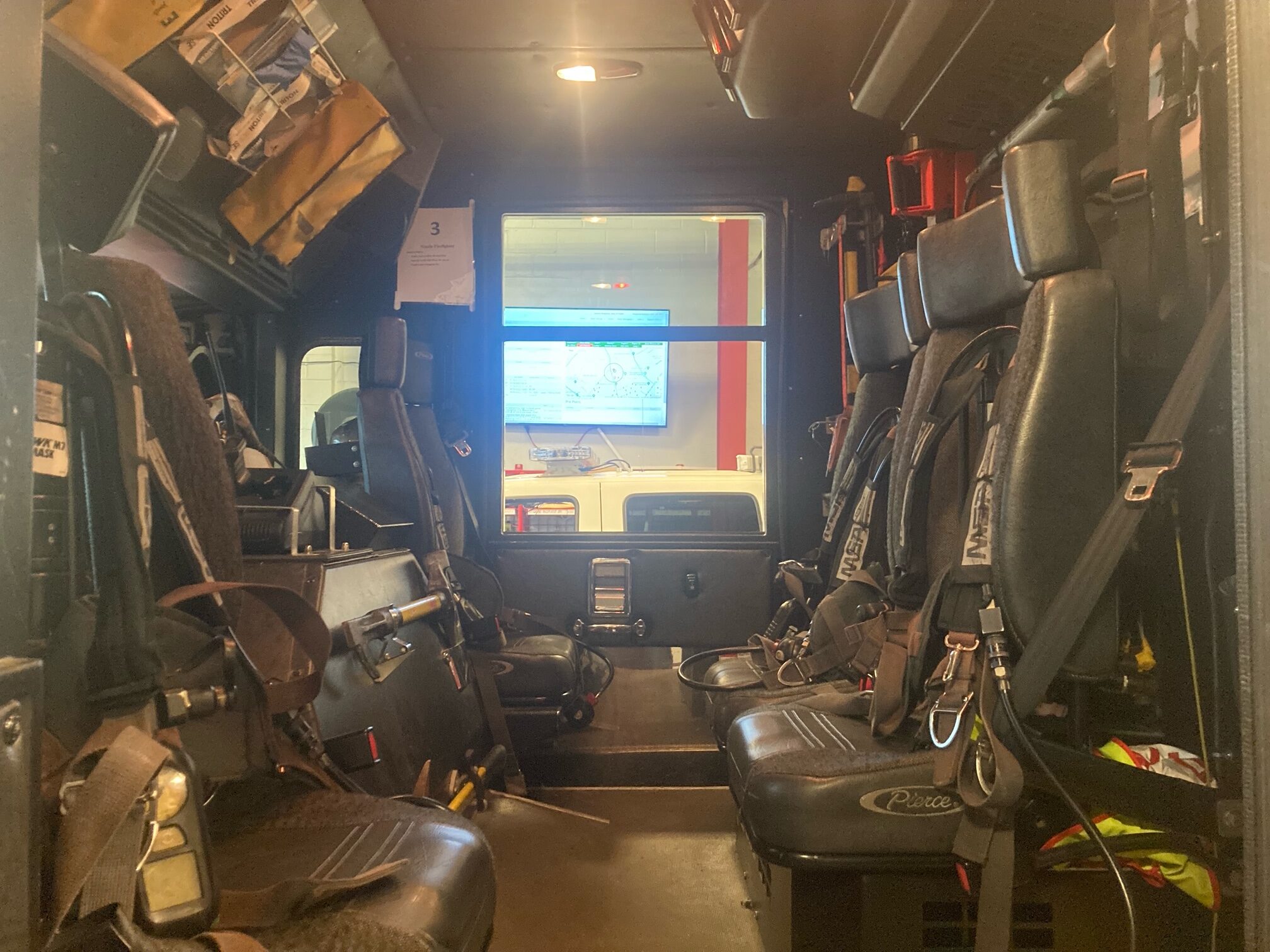

Total Seating; 7
SCBA Equipped Seating: 6

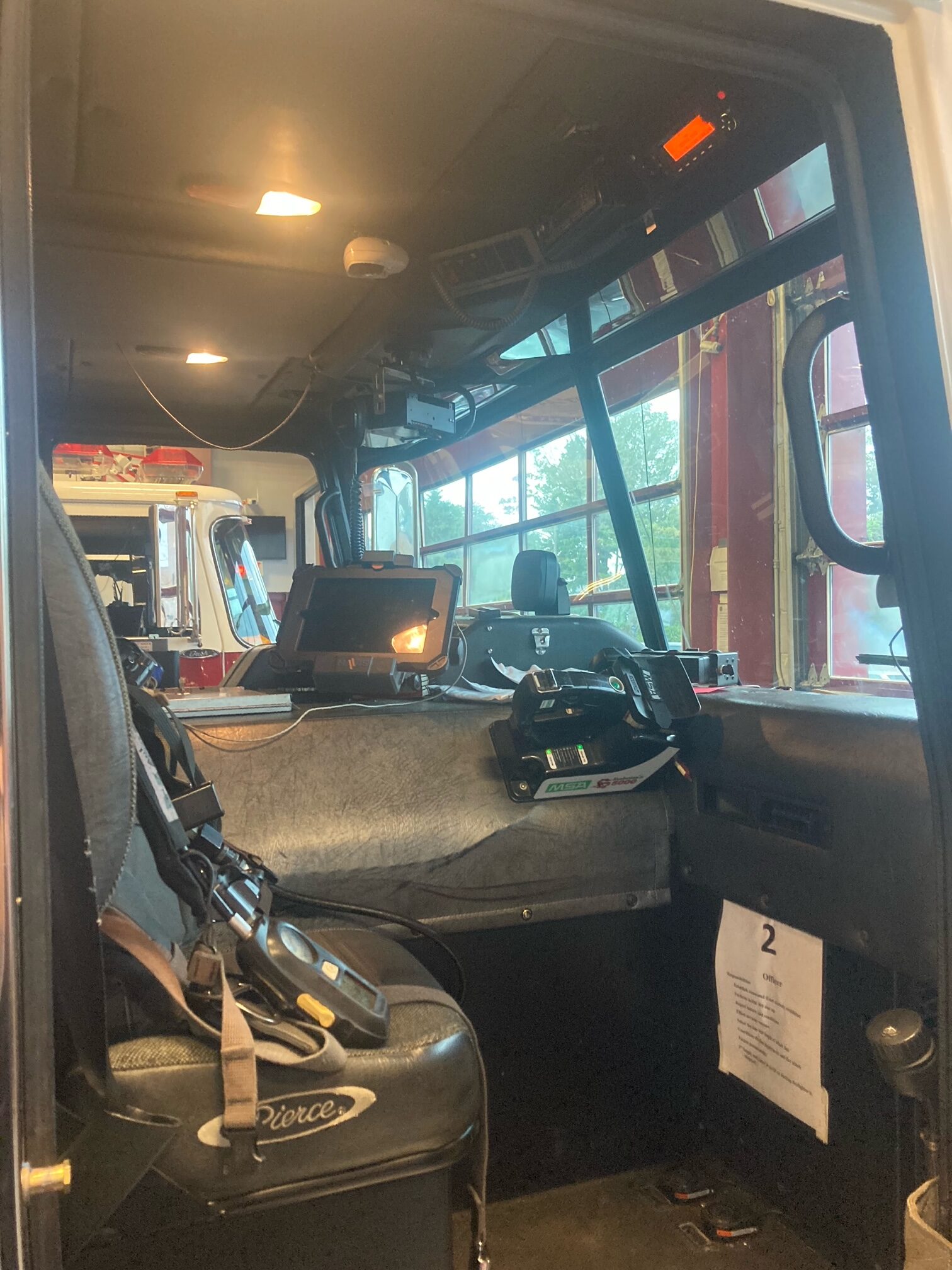

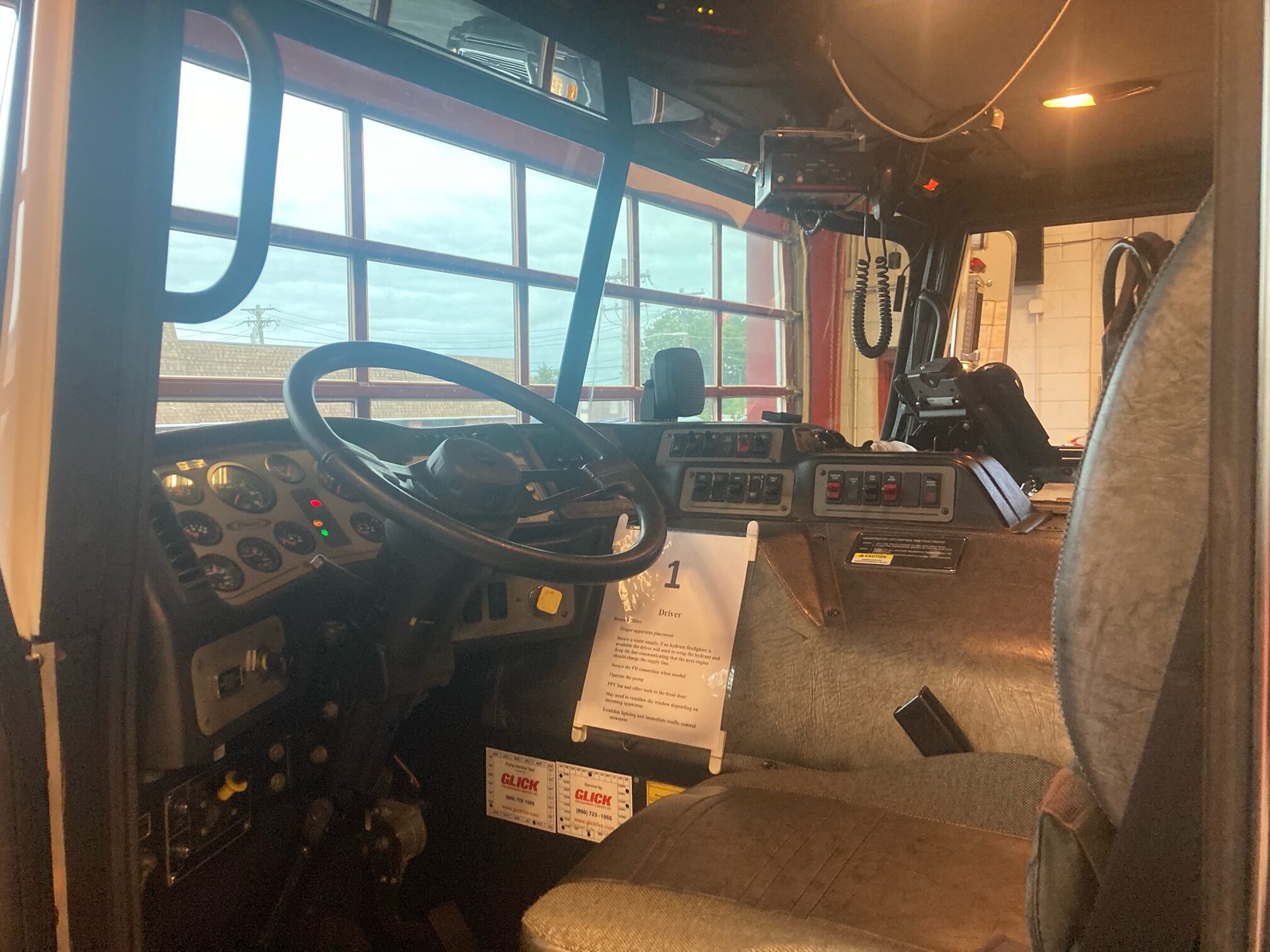

Raised, Air-Conditioned Cab
Power Windows
Pierce Command Zone
Code 3 Lighting Package w/ Arrowstick and PB100 Siren
Federal Q2B Siren
LED Headlights

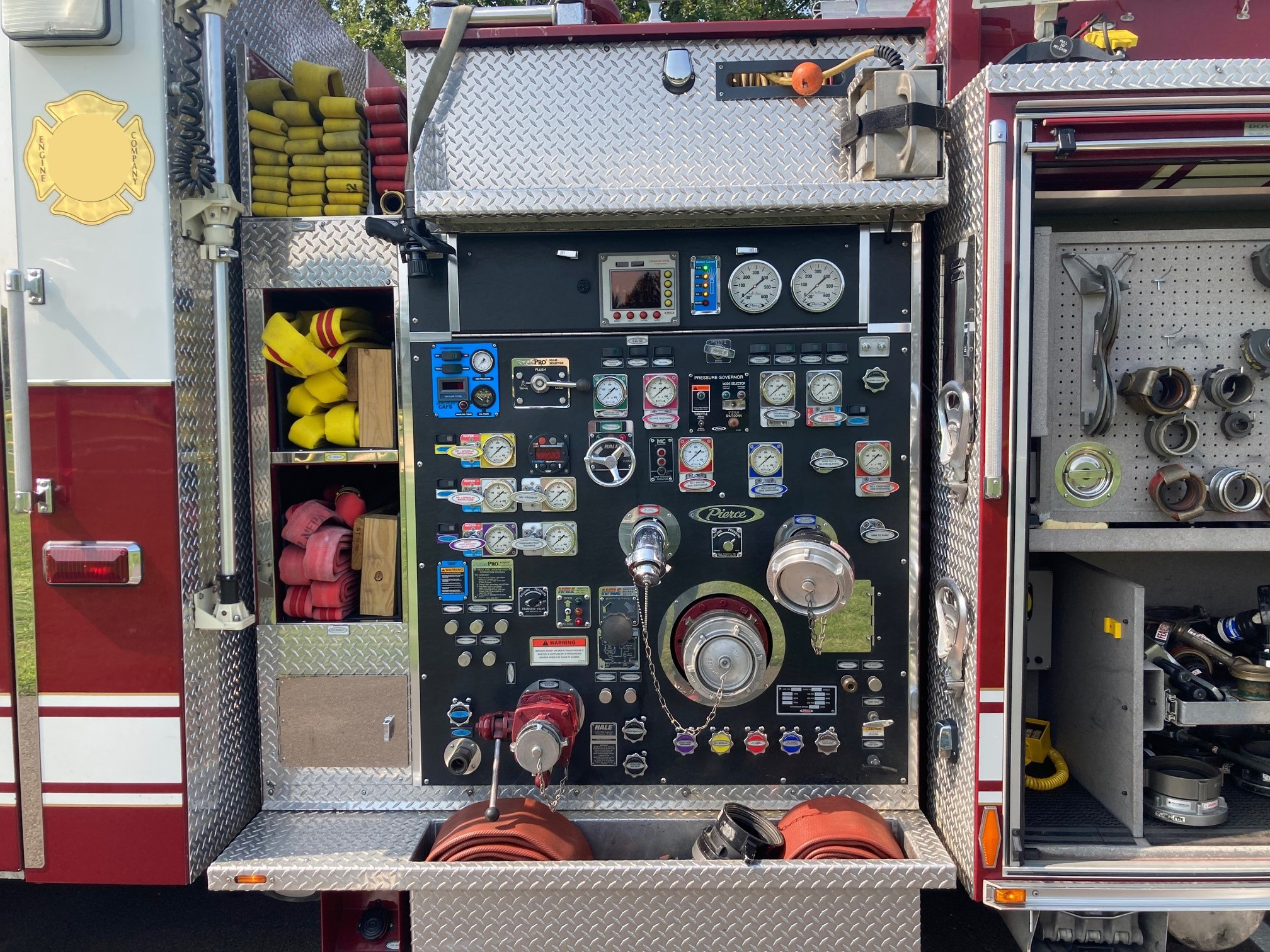

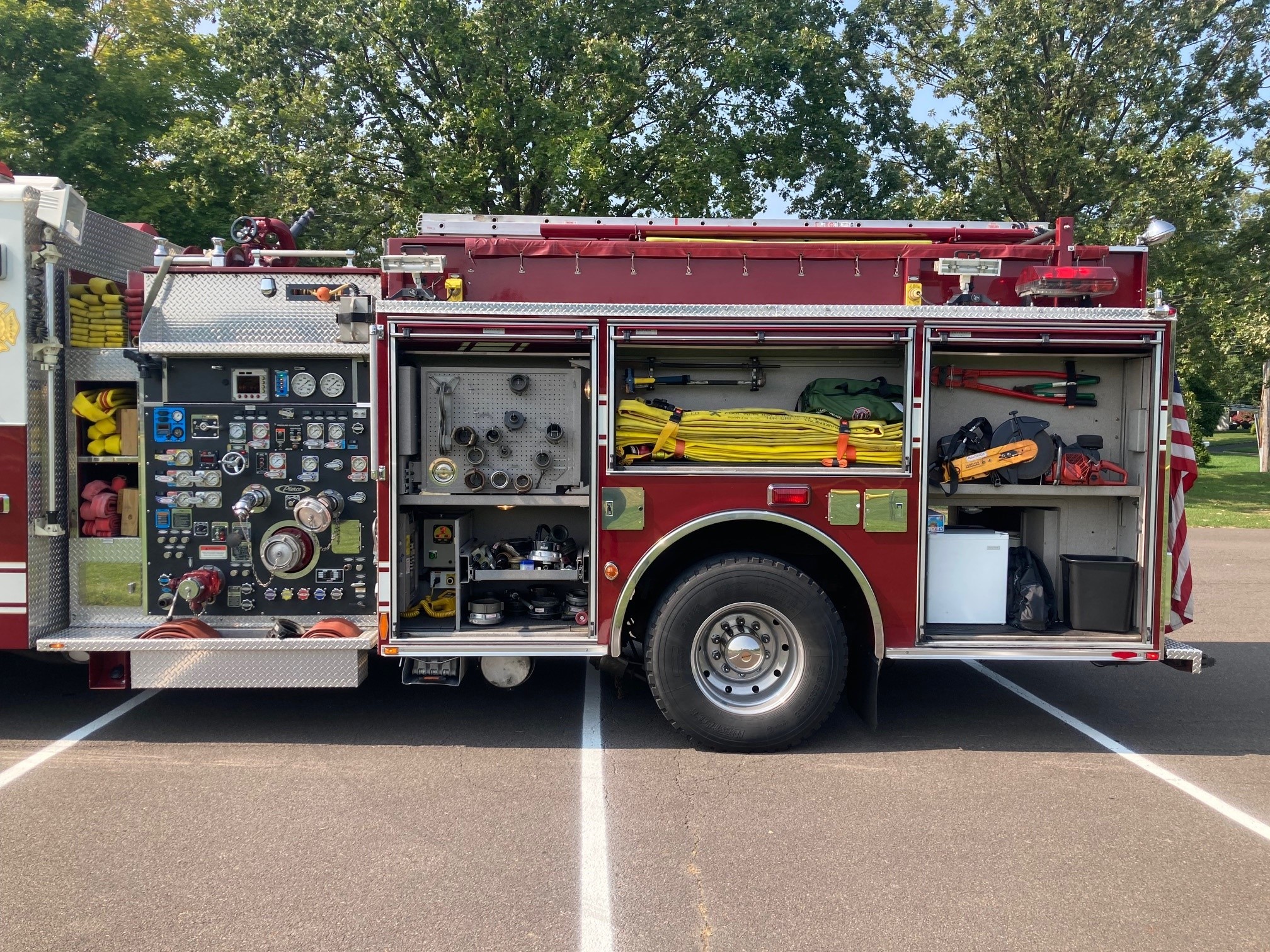

Pump & Tank

Pump: Hale QTWO-200, Two Stage
Pump Rating (GPM): 2000
Tank Size (U.S Gallons): 750
Pump Hours: 365
Tank Material: Poly
Recent Pump Certification

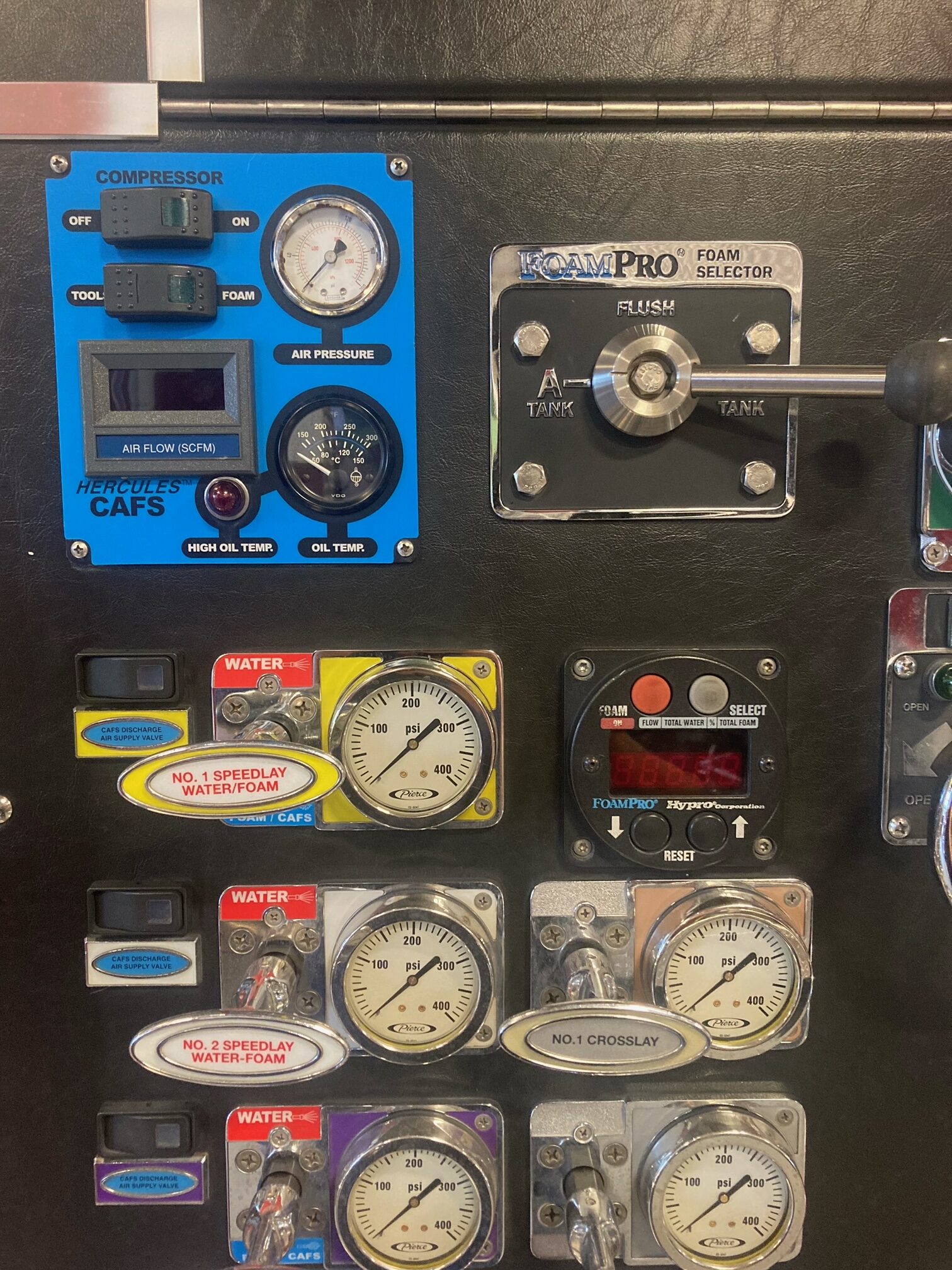

Foam System: Foam Pro 2002 (Dual Agent) w/ CAFS
Foam System Tank Size: 50 gallon (20/30)

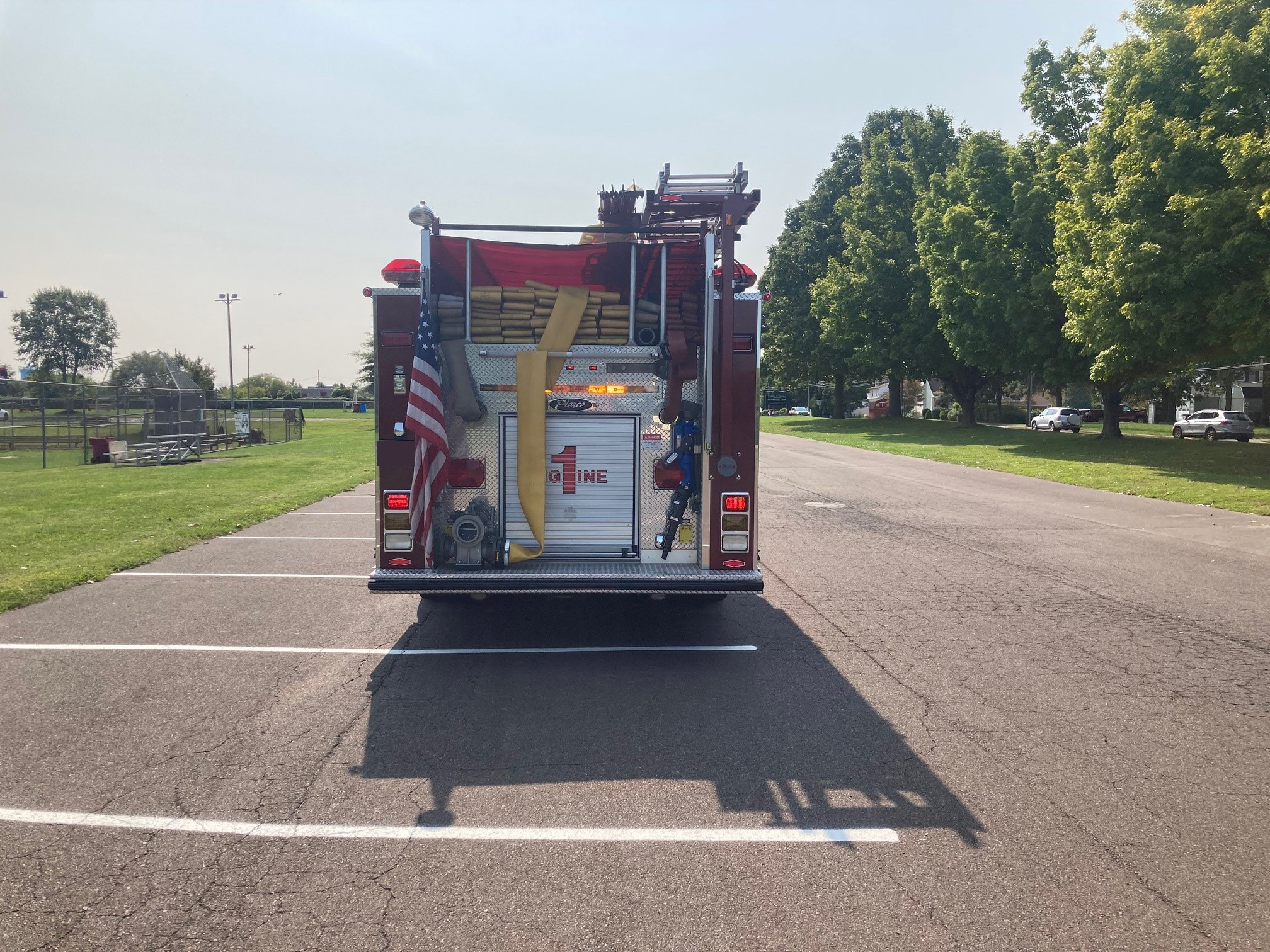

Hosebed Partition (adjustable)
Capacity- 1500′ of 5.00″, 500′ of 3.50″, 200′ of 3.50″, 100′ of 3.50″

(1) 3” Deluge Outlet- TFT Extend-A-Gun with Akron 3423 Apollo Monitor
(1) Hannay booster reel with 200’ of 1” Forestry Line
(2) 2” Slideout speedlay trays- 400’ total capacity
(1) 300’ Top mounted Crosslay bed for 2’” hose with 2” piping

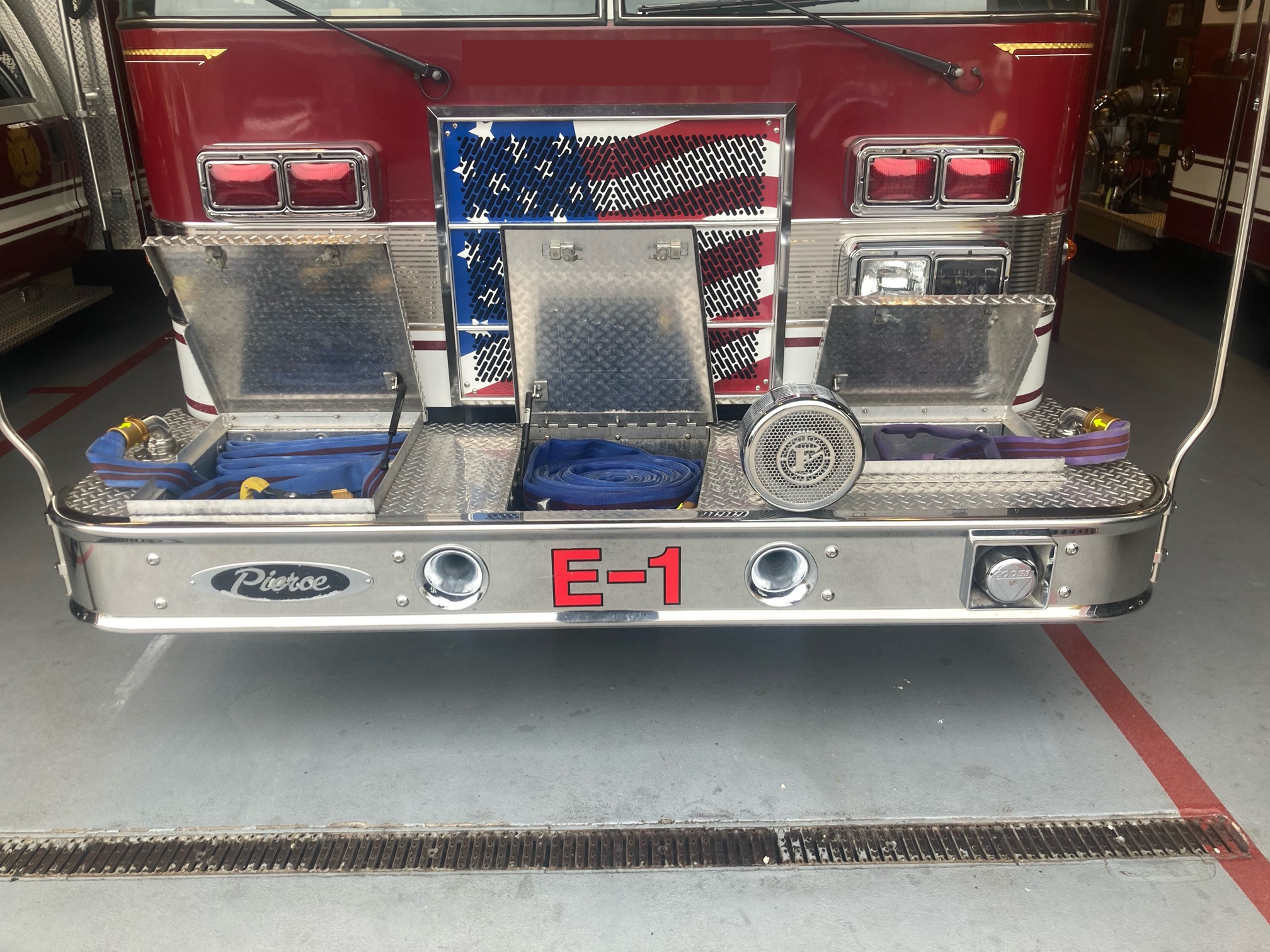

(2) 1.50” Bumper outlets with 2” piping and swivel
(2) 2.50” Rear outlets with 3”piping
(1) 6” Main DS inlet (Hale, electronically controlled)
(2) 3” Aux Inlets (DS/PS)
(2) 2.5” DS Outlets
(1) 2.5” PS Outlet
(1) 5” Outlet (PS)

Generator & Electrical

Amps 8.0 KW Hydraulic, Constant Engaged PTO
Reel: Hannay 1600 (3-wire)- 200ft

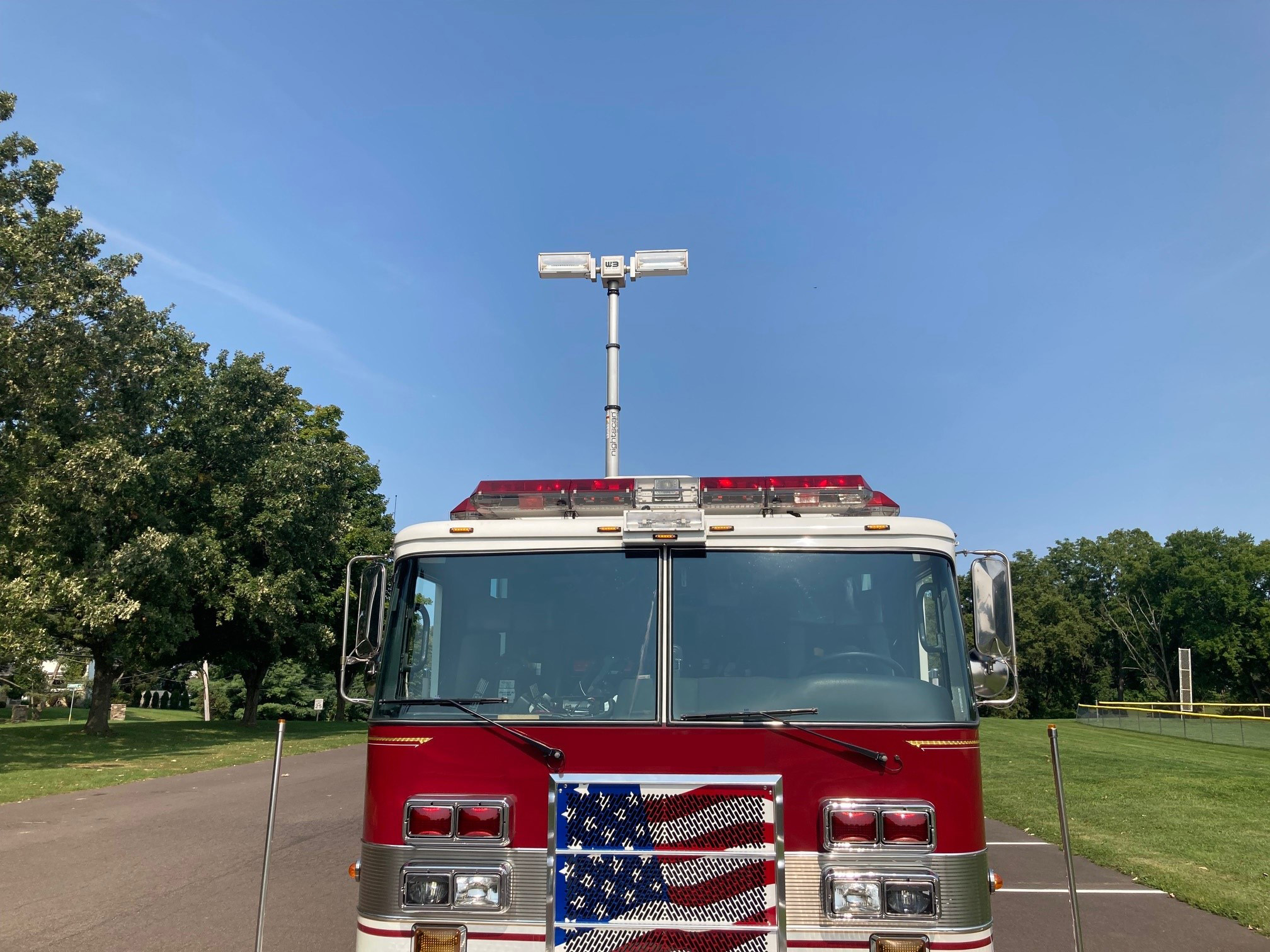

NightScan Light Tower
(1) Kwik-Raze Visor Light (750W)
(2) Kwik-Raze Push-Up Light Poles (1500W)
(4) Woodhead 120V Body Mounted Receptacles

Dimensions

Miles 19325
Engine Hours 3535
Height 128.00″
Width 96.00″
Length 402.50″
Wheel Base 213.00″
GVW Front 20,800lbs
GVW Rear 31,000lbs

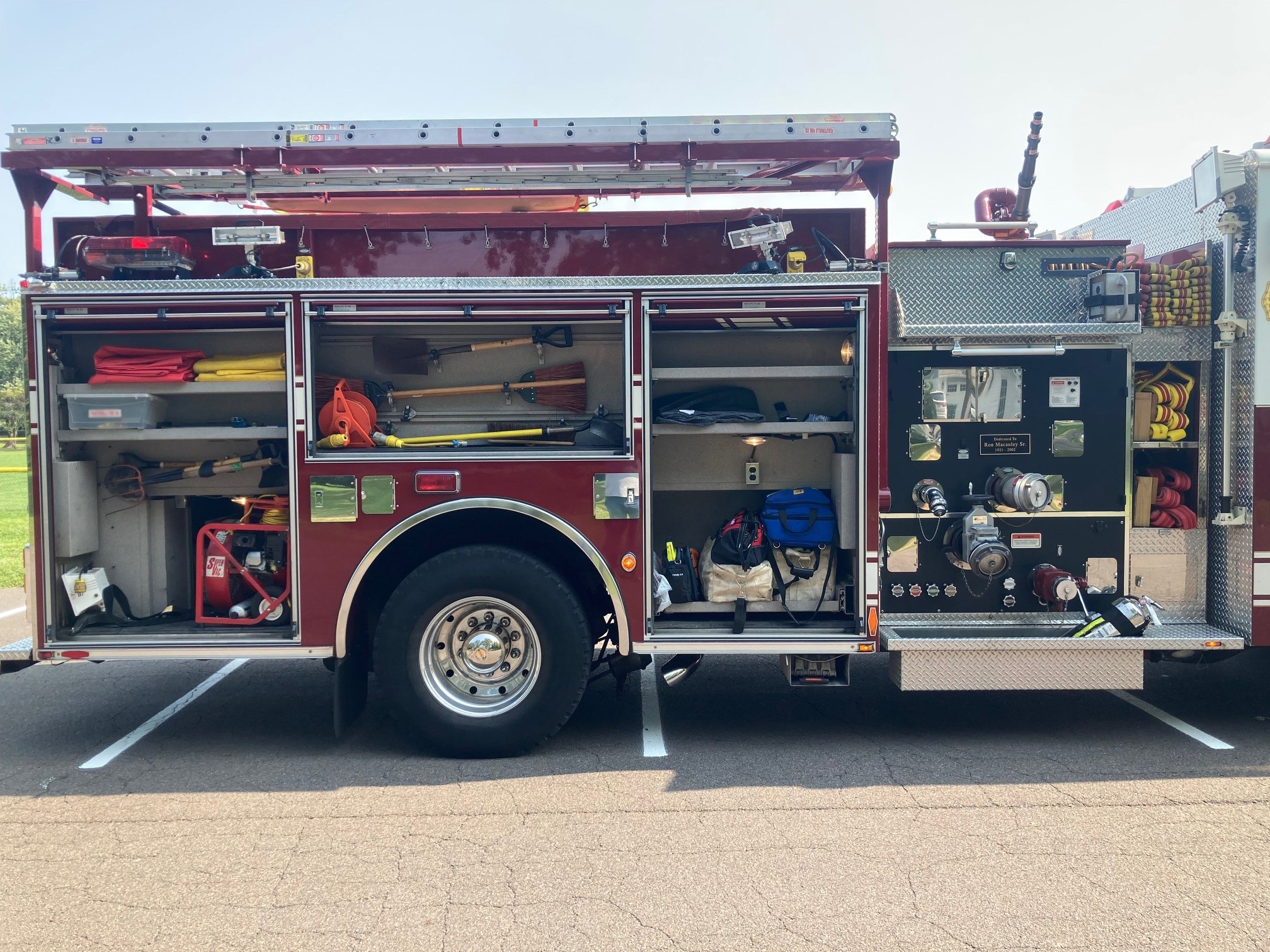

Equipment

(1) 24′ 2 section extension ladder,
(1) 14′ Roof Ladder
(1) 10′ Attic Ladder
1000′ 5″ Supply Hose
200′ 1in Forestry Line (Booster Reel)
(2) 6′ Pike Pole, (2) 10′ Pike Pole
All body mounted lighting
Refrigerator
Other hose and equipment are negotiable
