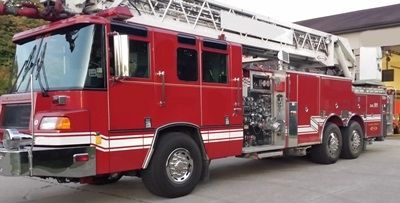

1997 Pierce 105′ ladder Quint 1500/300 (Q0752)

General

Detroit 470 Hp motor with Allison Automatic
seats 6 fire fighters
5 set for SCBA
Ladders carried and come with truck:
2 x 35′ 2 fly ext.
1 x 24′ ext.
2 x 16′ roof
1 fold attic 10′
1 combo 15′
1 14′ San Francisco
1 14′ roof on ladder
storage for 6 pike poles in rear.
105′ heavy duty aerial ladder with piped waterway.
includes Elkhart electric nozzle.
waterway has gate and additional 21/2″ high rise hookup by pierce.
Ladder maint. by Pierce service Center yearly.
ladder tested 10-2012 ( will be testing in 2 to 3 weeks)
Pump tested June 2013 in house ( May 2012 by service company)
ASKING price $147,000.00

Pump

Waterous 1500gpm 2 stage pump
300 gallon poly tank
rear 6″ intake for ladder waterway supply
4″ discharge for ladder waterway from pump
2nd 4″ LDH discharge off pass side
2 21/2″discharge off driver side
2 21/2″ discharge off pass side
6″ intake each side
21/2″ intake each side
hose load:
1000′ 5″ hose
500′ 3″ hose under ladder
100′ front bumper line
2 cross lays
200′ 13/4″ hose each at pump panel

Electrical

6kw diesel generator off fuel system
2 1500 watt quartz lights 1 each side
200′ cord reel with gang box off driver side above pump
5 light box lights to go with truck.
no other equipment with truck other than flashlights and ground ladders

Dimensions

76,000 total miles
GVW 68,000
Height 12 3″
Length 41’5″

NOTE:

total hours on truck approx. 6600

Ladder hours are approx. 1440

no hours meter on pump but the fire department used it very little, we have used pump approx. 75 hrs in the 9 years we had the truck, most hrs are for yearly pump testing and monthly operational checks. we used it on fires a total of 3 times in our 9 years. we run the truck mostly as ladder and not quint first out.

Tip load is 750 lbs any elevation
