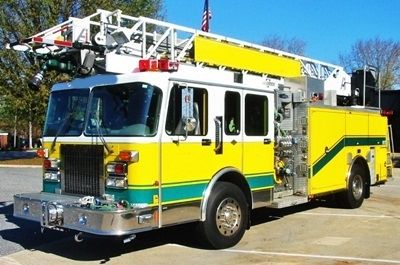

1996 Spartan Quality 75′ quint 1250/400 (Q0712)

General

Cummins diesel M11
Allison 4060P 4/5 SPD W/Mode
seats 6 fire fighters
5 SCBA,
On spot chains,
air conditioning.
INCLUDES
1-35, 1-28, 2-16 roof, 1-12 roof, and two 10 attic ladders.
Also included are 1-12 pike poles, 2-8 ft poles, 2-6 foot poles, four foot New York pole, and six foot trash hook.

Pump

1250gpm Waterous
400gal poly tank.
1500 gpm aerial master stream
1000″ 4″
1000′ 3″
crosslay 2-250’x1.75″,
1-200’x2.5″,
1 -100’x1.75 trash line,

Electrical

Amps generator 10 kw
2-250′ electric reels with 2-500watt tip lights
2-750 watt flood light which runs off a Hydraulic generator

Dimensions

Approx 28 000 miles
2871 hours
11′ 4″ tall,
34′ 6″ long
wheelbase of 202″
front 20,000lbs
rear 31,000lbs
gvw 51,000lbs
