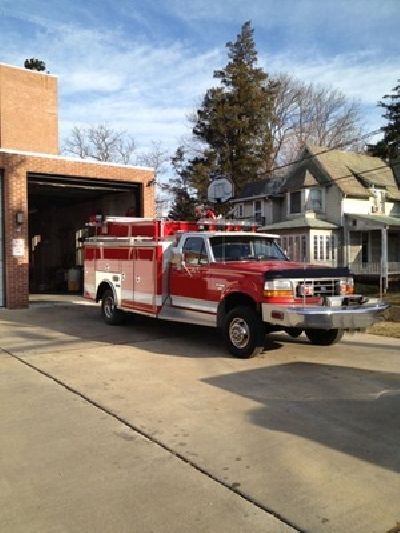

1994 Ford Super Duty 4 x 4 450/250 (E2102)

General

4 x 4
Marion mini pumper body
Steel Channel Chrome front bumper
7.3 L V-8 Engine
185 HP Engine
4-Speed Automatic with overdrive
Oil Cooler Super cooling package
Borg Waner Standard two wheel drive
Two speed four wheel drive
Two (2) tanks – Total 36 gallon Capacity Two (2) Fuel Fills – Right rear at wheel well Tank Selector Switch on cab dash
FRONT AXLE
Dana #70 with manual hubs (After market four-wheel conversion) 5,600 lb. capacity front axle Suspension to match GVW Front stabilizer bar Power steering
REAR AXLE
11,000 lb. capacity rear axle – standard width 5.13 rear end gear ratio Suspension to match GVW Heavy duty gas shock absorbers
BRAKES
Power disc brakes, front and rear
WHEELS AND TIRES
Steel disc type wheels LT235/85R X 16 – BSW – Load range E tires – front and rear Radial Tires All terrain tread – front and rear
SEATING
Full bench seat – Dark Charcoal vinyl
MISCELLANEOUS CAB AND CHASSIS FEATURES
Ambulance prep package XL Trim Headliner/Insulation package Air conditioning Tinted glass Bright finish West Coast type mirrors Light convenience group Intermittent wipers Voltmeter and tachometer Dual note electric horn Cigar lighter Engine block heater Dual fuel tanks Paint color – White over Yellow AM/FM stereo radio with digital clock
WINCH
Front Mounted Ramsey Model No. RE-12000 12,000 Lb. rated capacity 12 volt electric 125 feet of 3/8″ galvanized aircraft cable with clevis ho.LADDERS Alco-Lite #ALP-070-14, 14 ft. combination (hose bed compartment)
Duo-Safety #585-A, 10 ft. folding ladder (above right compartments).

Pump

PUMP
Hale Model No. CBP4 250 GPM rated from draft/450 GPM from hydrant PTO driven from transfer case Electric type ‘Hot Shift’ PTO 2 1/2″ Suction Inlet Intake Relief Valve – Elkhardt #40 Hale Pressure Relief Valve Tank-to-Pump 3 inch
DISCHARGES One (1) 2 1/2″ – Left side pump panel One (1) 2 1/2″ – Left side (outer) hose bed One (1) 1 3/4″ – Left side (inner) hose bed One (1) 3″ – ‘Apollo’ Monitor Pipe (independent of pump)

WATER TANK UPF-2 Polypropylene Tank (Lifetime) 250 Gallon Capacity 1″ Tank Re-fill Line MC-5 Tank Level Indicator.SUCTION HOSE Two (2) 2 1/2″ NST x 8 ft. Kocheck lightweight PVC SUPPLY HOSE 600′ -5″ ATTACK LINES 200′ -1 3/4″ 200′ -2 1/2″ 200′ -1’¿½

Electrical

12 VOLT ELECTRICAL SYSTEM 165 Amp, 12 volt alternator two (2) 84 amp batteries Cole Hersee single disconnect switch Kusmaul ‘single’ battery system conditioner with ‘Auto-Eject’
120 VOLT ELECTRICAL SYSTEM Onan #4EGH-EB/38018 4,000 watt Electric Start (quick disconnect to vehicle batteries) 9 Horsepower Gasoline Engine (1.8 Gallon independent fuel system) Cutler Hammer breaker box Grounding cable and clamp – 24′ #4 welding cable 48″ copper plated steel grounding stake Two (2) 500 watt ‘GFE Extendalite’ telescopic lights

Dimensions

Miles:25959.1 (January 10 2013)
Hours: 2664.8
Wheelbase: 161″
Cab to Axle: 84″
Total GVWR: 15,100 LBS.
